SKU: M8x1.25-C8-INSFLANUT-BZP-OJ

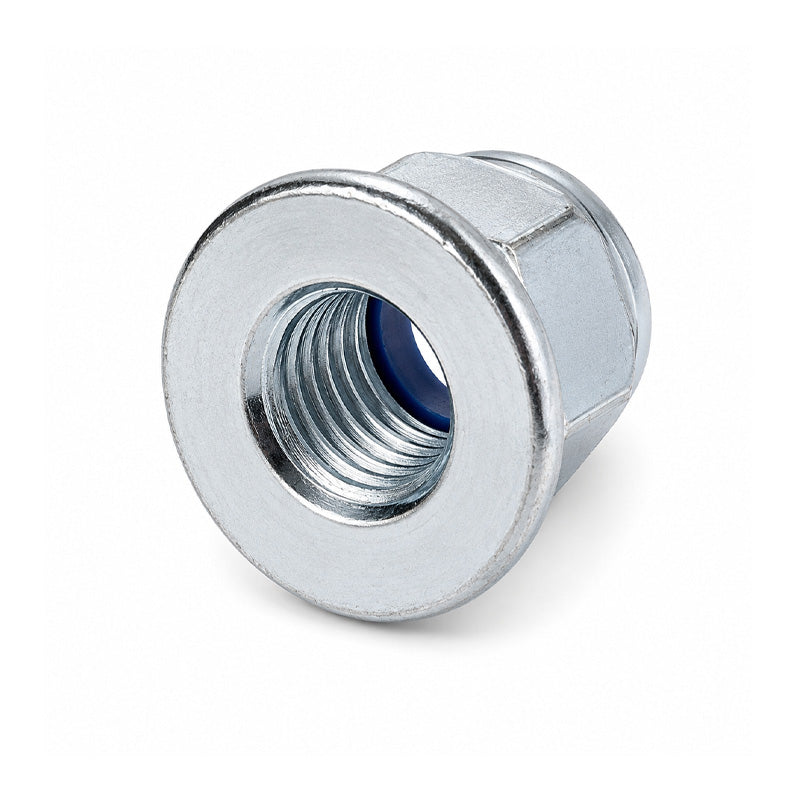

Unifix M8x13 - Class 8 Steel Insert Flange Nut DIN 6926 with 1.25mm Pitch and Bright Zinc Plated Finish
Unifix M8x13 - Class 8 Steel Insert Flange Nut DIN 6926 with 1.25mm Pitch and Bright Zinc Plated Finish
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
In stock
Price Break
10+
$0.43
20+
$0.29
50+
$0.18
100+
$0.13
500+
$0.07
1000+
$0.05
Quantity
Couldn't load pickup availability
Description
Description
Steel Insert Flange Nuts with Bright Zinc Plated Finish: These nuts prevent loosening from vibration with a nylon insert that grips the thread as the nut tightens. The flange design helps distribute the load, while the zinc-plated finish offers corrosion resistance, ensuring secure, long-lasting performance in industrial and mechanical applications.
Benefits: Prevents loosening, distributes load, offers corrosion resistance.
- Brand / Quality:
- Unifix - High Quality
- Thread Size:
- M8
- Pitch:
- 1.25mm
- Conformity:
- DIN 6926
- Finish:
- Bright Zinc Plated Finish
Technical
Technical
| d1 | 8mm |
|---|---|
| d2 | 17.9mm |
| e | 16.73mm |
| m | 9mm |
| s | 13mm |
| h | 10.8mm |
| Thread Pitch | 1.25mm |
| Weight Kg | 0.0088 kg |
