SKU: MB.100115.DLX

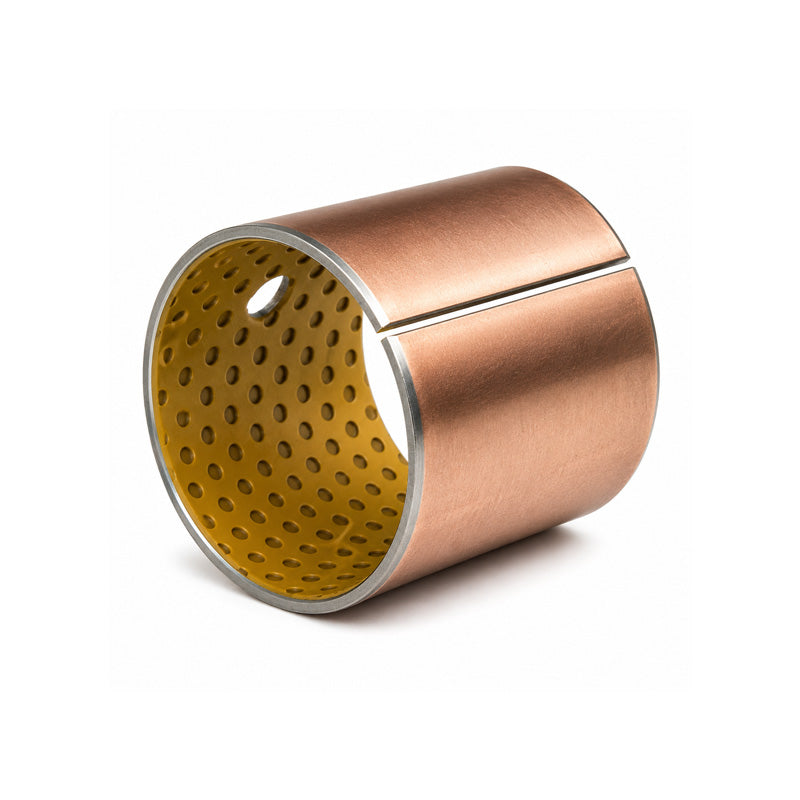

MB100115X Bronze Backed Steel Bush 100x105x115mm

Name: MB100115X Bronze Backed Steel Bush 100x105x115mm
Brand: Simply Wrapped Steel Bushes
SKU: MB.100115.DLX
Price: 32.41 USD
Availability: InStock

$32.41 ex VAT

Sale Sold out

Equivalent to: PAP100115P11

In stock

Price Break

9+ $21.70

19+ $20.48

29+ $20.24

39+ $20.00

49+ $19.75

69+ $19.51

99+ $18.29

199+ $18.05

249+ $17.80

499+ $17.56

999+ $17.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Wrapped Steel Bushes - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 105mm
Length:: 115mm

Technical

d	100mm
D	105mm
b	115mm
Structure	Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer
Maximum static load	140 N/mm<sup>2</sup>
Maximum dynamic load	70 N/mm<sup>2</sup>
Maximum sliding speed	2.5m/s with grease
Operating temperature	-40°C to +110° C
Intermittent maximum temperature	130° C
Thermal conductivity	2 W/mK
Coefficient of friction	0.05 to 0.12 with grease
Recommended housing tolerance	H7
Recommended shaft tolerance	h8
Recommended shaft finish	HB > 200
Recommended shaft hardness	HB > 200
