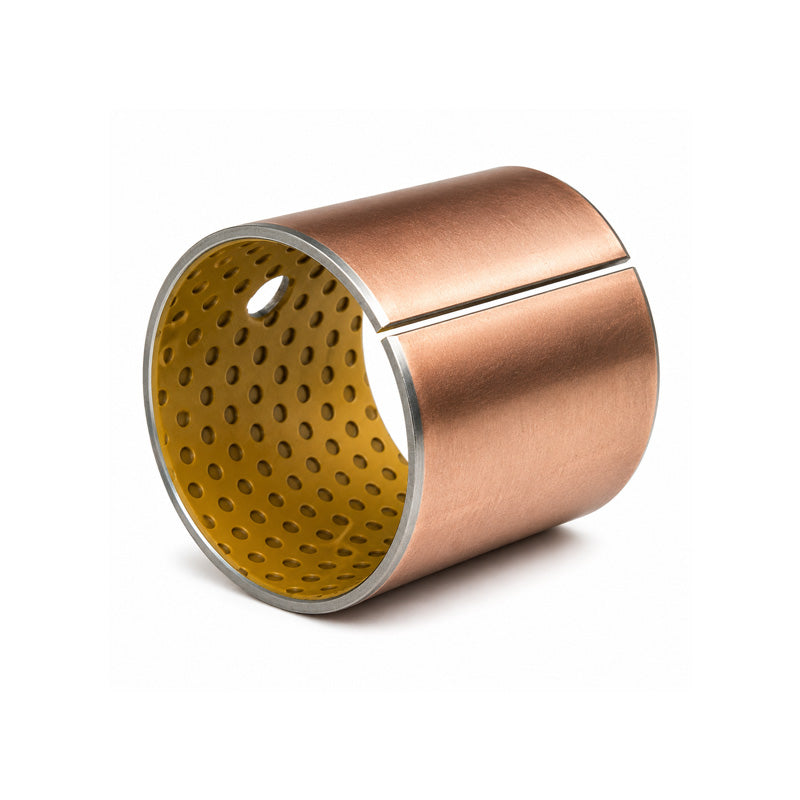

• MB10060X Bronze Backed Steel Bush 100x105x60mm
1 1

SKU: MB.10060.DLX

MB10060X Bronze Backed Steel Bush 100x105x60mm

MB10060X Bronze Backed Steel Bush 100x105x60mm
$16.04 ex VAT
$16.04 ex VAT
Sale Sold out

Equivalent to: PAP10060P11

In stock

Price Break
9+ $10.74
19+ $10.14
29+ $10.02
39+ $9.90
49+ $9.78
69+ $9.66
99+ $9.05
199+ $8.93
249+ $8.81
499+ $8.69
999+ $8.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
100mm
Outside Diameter:
105mm
Length:
60mm
Technical
d 100mm
D 105mm
b 60mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer
Maximum static load 140 N/mm<sup>2</sup>
Maximum dynamic load 70 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s with grease
Operating temperature -40&deg;C to +110&deg; C
Intermittent maximum temperature 130&deg; C
Thermal conductivity 2 W/mK
Coefficient of friction 0.05 to 0.12 with grease
Recommended housing tolerance H7
Recommended shaft tolerance h8
Recommended shaft finish HB &gt; 200
Recommended shaft hardness HB &gt; 200
