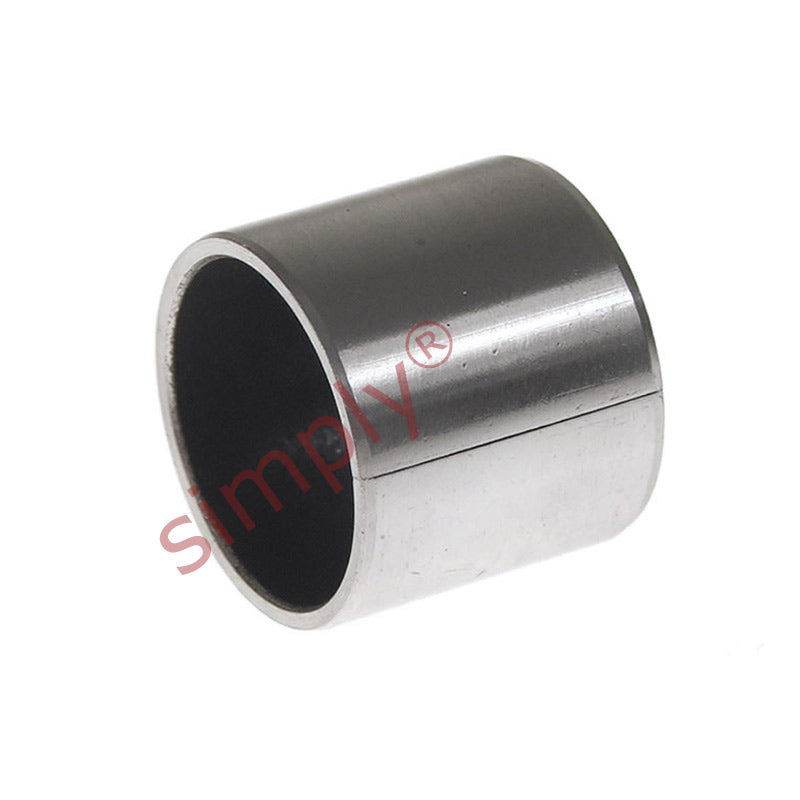

• MB11060D Wrapped Steel Plain Bush 110x115x60mm
1 1

SKU: MB.11060.DLU

MB11060D Wrapped Steel Plain Bush 110x115x60mm

MB11060D Wrapped Steel Plain Bush 110x115x60mm
$17.07 ex VAT
$17.07 ex VAT
Sale Sold out

Equivalent to: PAP11060P10

In stock

Price Break
9+ $11.44
19+ $10.80
29+ $10.67
39+ $10.54
49+ $10.41
69+ $10.28
99+ $9.64
199+ $9.51
249+ $9.38
499+ $9.25
999+ $9.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
110mm
Outside Diameter:
115mm
Length:
60mm
Technical
d 110mm
D 115mm
b 60mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 200
