SKU: MB.1515.DLX

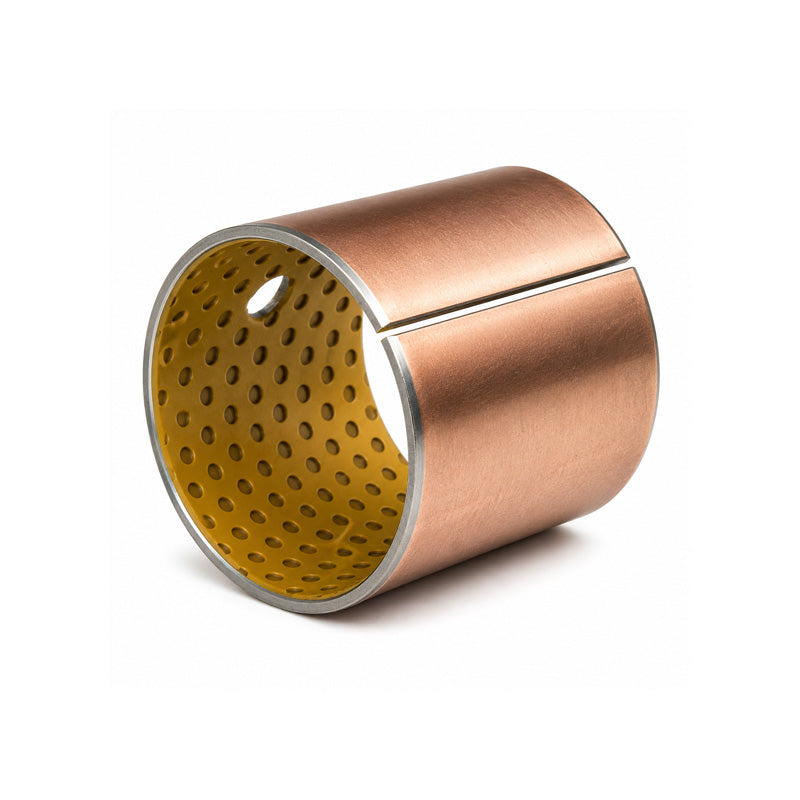

MB1515X Bronze Backed Steel Bush 15x17x15mm
MB1515X Bronze Backed Steel Bush 15x17x15mm
Regular price
$3.83
ex VAT
Regular price
Sale price
$3.83
ex VAT
Equivalent to: PAP1515P11
In stock
Price Break
9+
$2.56
19+
$2.42
29+
$2.39
39+
$2.36
49+
$2.33
69+
$2.30
99+
$2.16
199+
$2.13
249+
$2.10
499+
$2.07
999+
$2.02
Quantity
Couldn't load pickup availability
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 17mm
- Length:
- 15mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 17mm |
| b | 15mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
