• MB4060D Wrapped Steel Plain Bush 40x44x60mm
1 1

SKU: MB.4060.DLU

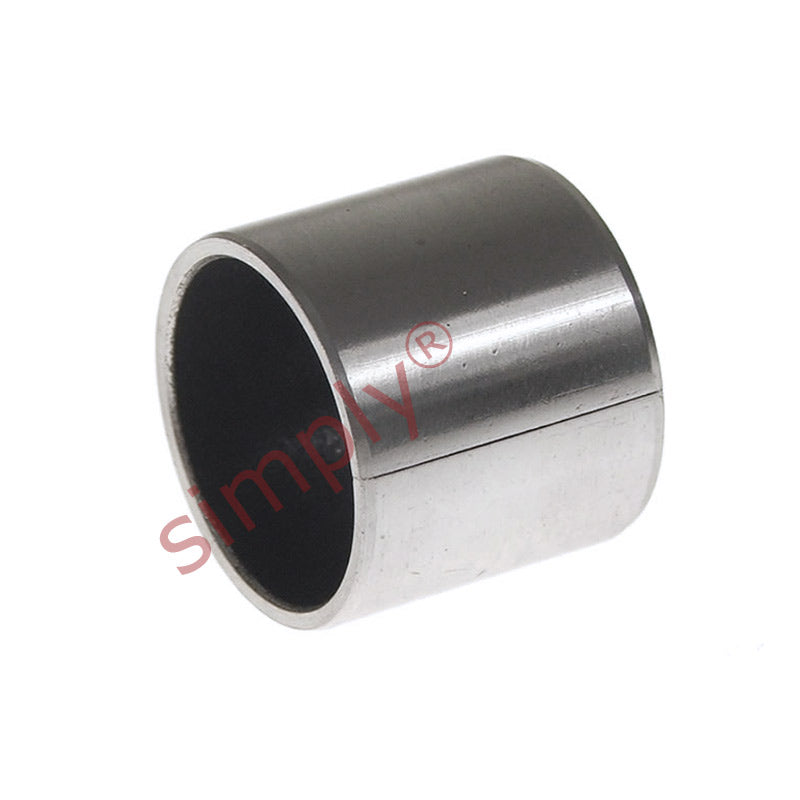

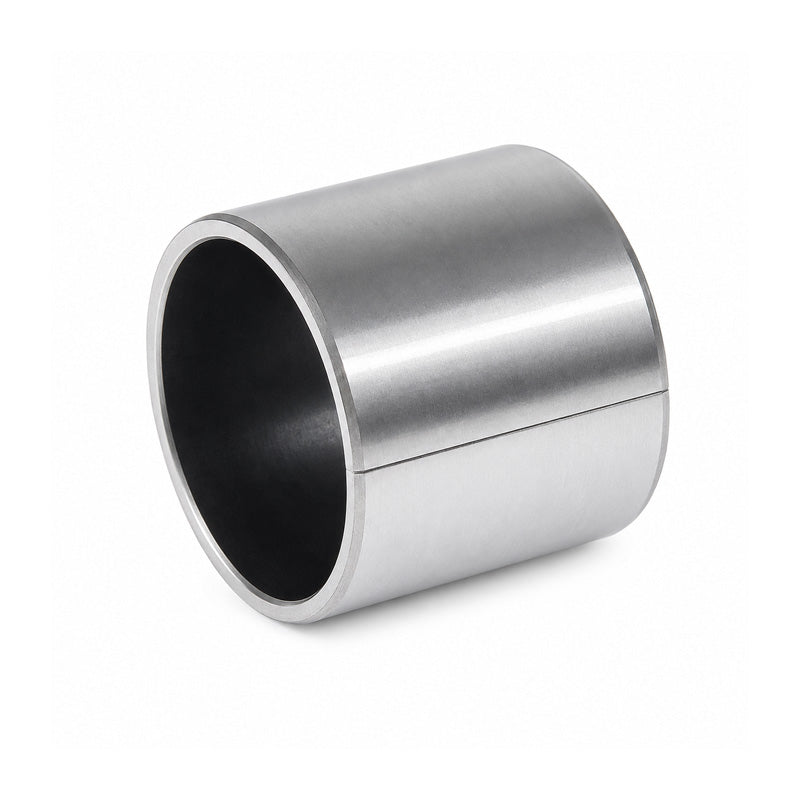

MB4060D Wrapped Steel Plain Bush 40x44x60mm

MB4060D Wrapped Steel Plain Bush 40x44x60mm
$33.23 ex VAT
$33.23 ex VAT
Sale Sold out

Equivalent to: PAP4060P10

In stock

Price Break
9+ $22.26
19+ $21.01
29+ $20.76
39+ $20.51
49+ $20.26
69+ $20.01
99+ $18.76
199+ $18.51
249+ $18.26
499+ $18.01
999+ $17.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
40mm
Outside Diameter:
44mm
Length:
60mm
Technical
d 40mm
D 44mm
b 60mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 201
