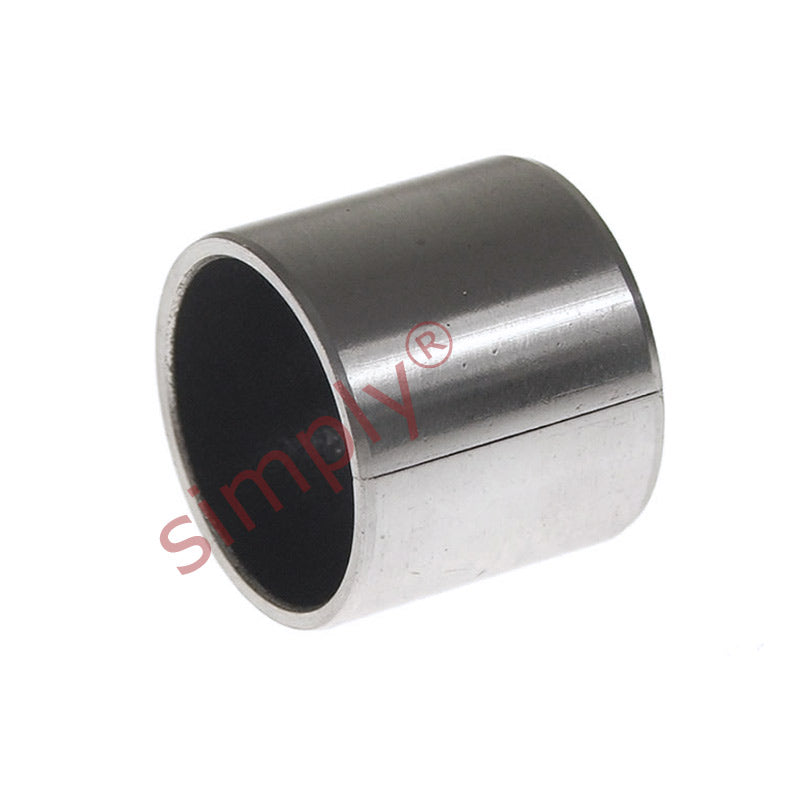

• MB5040D Wrapped Steel Plain Bush 50x55x40mm
1 1

SKU: MB.5040.DLU

MB5040D Wrapped Steel Plain Bush 50x55x40mm

MB5040D Wrapped Steel Plain Bush 50x55x40mm
$8.09 ex VAT
$8.09 ex VAT
Sale Sold out

Equivalent to: PAP5040P10

In stock

Price Break
9+ $5.42
19+ $5.12
29+ $5.06
39+ $5.00
49+ $4.94
69+ $4.88
99+ $4.57
199+ $4.51
249+ $4.45
499+ $4.39
999+ $4.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
50mm
Outside Diameter:
55mm
Length:
40mm
Technical
d 50mm
D 55mm
b 40mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 200
