SKU: MB.5050.DLX

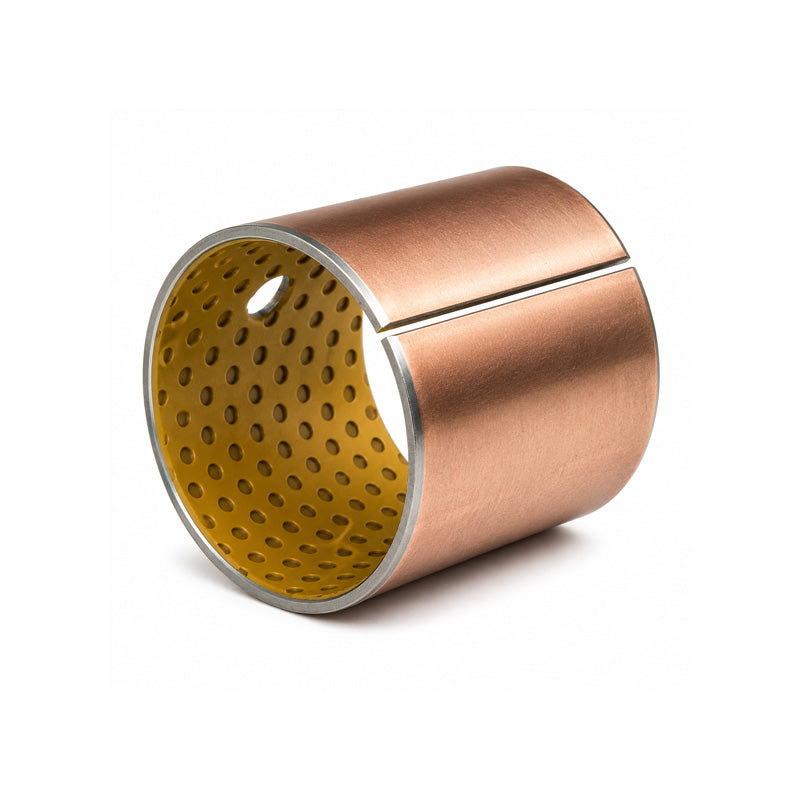

MB5050X Bronze Backed Steel Bush 50x55x50mm

Name: MB5050X Bronze Backed Steel Bush 50x55x50mm
Brand: Simply Wrapped Steel Bushes
SKU: MB.5050.DLX
Price: 8.78 USD
Availability: InStock

$8.78 ex VAT

Sale Sold out

In stock

Price Break

9+ $5.88

19+ $5.55

29+ $5.48

39+ $5.42

49+ $5.35

69+ $5.29

99+ $4.96

199+ $4.89

249+ $4.82

499+ $4.76

999+ $4.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Wrapped Steel Bushes - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 55mm
Length:: 50mm

Technical

d	50mm
D	55mm
b	50mm
Structure	Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer
Maximum static load	140 N/mm<sup>2</sup>
Maximum dynamic load	70 N/mm<sup>2</sup>
Maximum sliding speed	2.5m/s with grease
Operating temperature	-40°C to +110° C
Intermittent maximum temperature	130° C
Thermal conductivity	2 W/mK
Coefficient of friction	0.05 to 0.12 with grease
Recommended housing tolerance	H7
Recommended shaft tolerance	h8
Recommended shaft finish	HB > 200
Recommended shaft hardness	HB > 200
