SKU: MB.5550.DLU

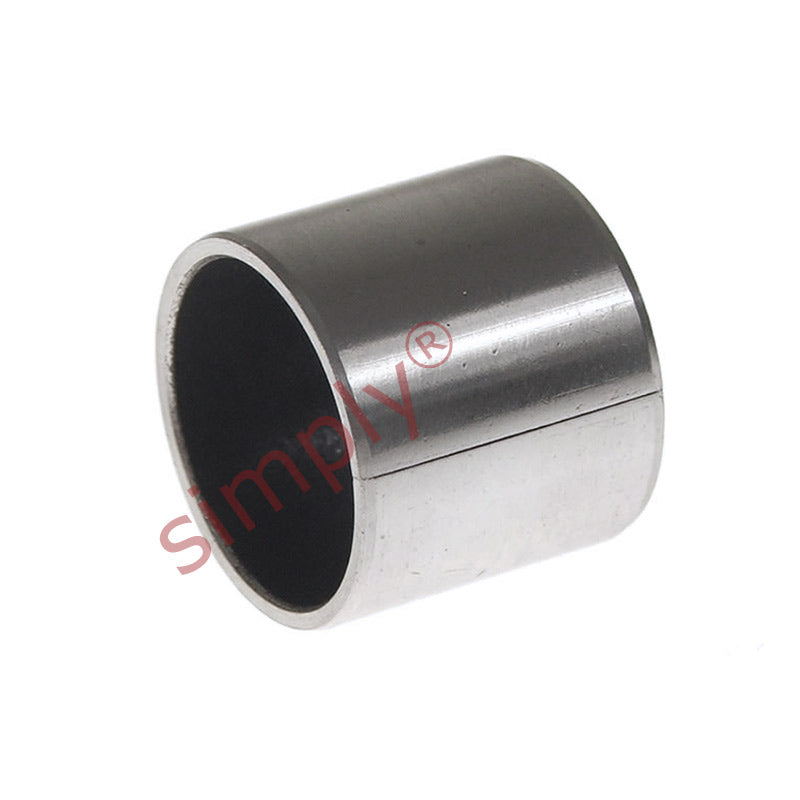

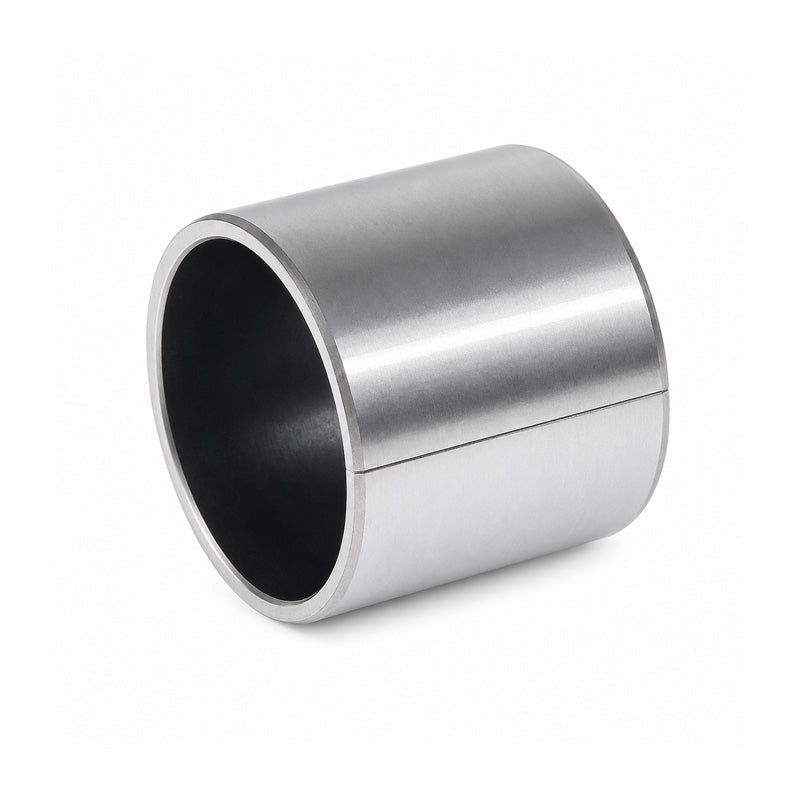

MB5550D Wrapped Steel Plain Bush 55x60x50mm

Name: MB5550D Wrapped Steel Plain Bush 55x60x50mm
Brand: Simply Wrapped Steel Bushes
SKU: MB.5550.DLU
Price: 12.08 USD
Availability: InStock

$12.08 ex VAT

Sale Sold out

Low stock

Price Break

9+ $8.09

19+ $7.64

29+ $7.54

39+ $7.45

49+ $7.36

69+ $7.27

99+ $6.82

199+ $6.73

249+ $6.64

499+ $6.54

999+ $6.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply Wrapped Steel Bushes - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 60mm
Length:: 50mm

Technical

d	55mm
D	60mm
b	50mm
Structure	Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load	250 N/mm<sup>2</sup>
Maximum dynamic load	140 N/mm<sup>2</sup>
Maximum sliding speed	2.5m/s dry 5.0m/s with oil
Operating temperature	-200° C to +280° C
Thermal conductivity	46 W/mk
Coefficient of friction (dry)	0.02 to 0.20
Coefficient of friction (oil lubricated)	0.02 to 0.15
Recommended shaft finish	Ra ≤ 0.4um (N5)
Recommended shaft hardness	HB > 200
