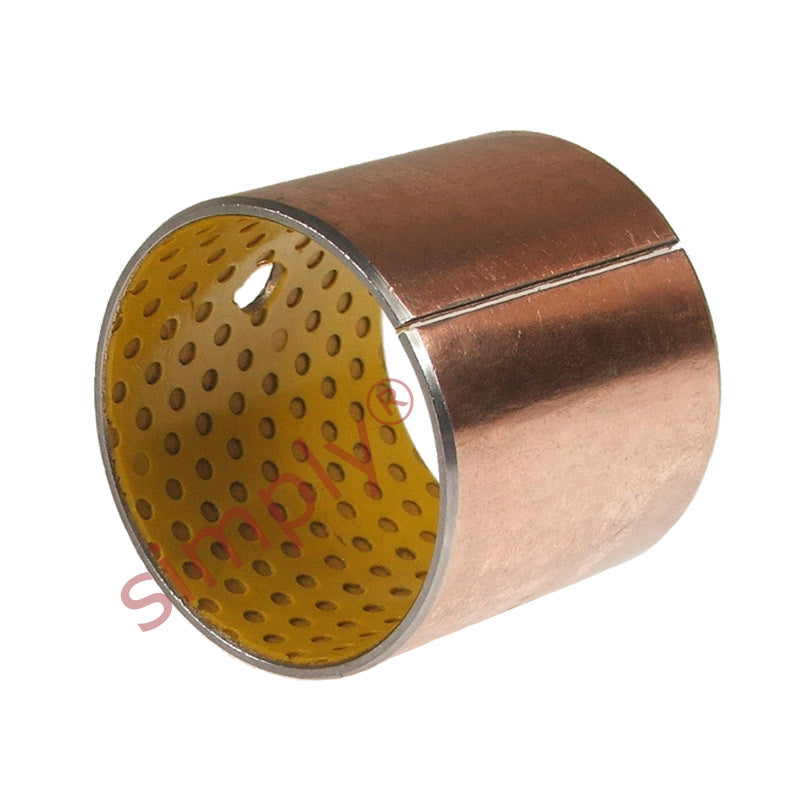

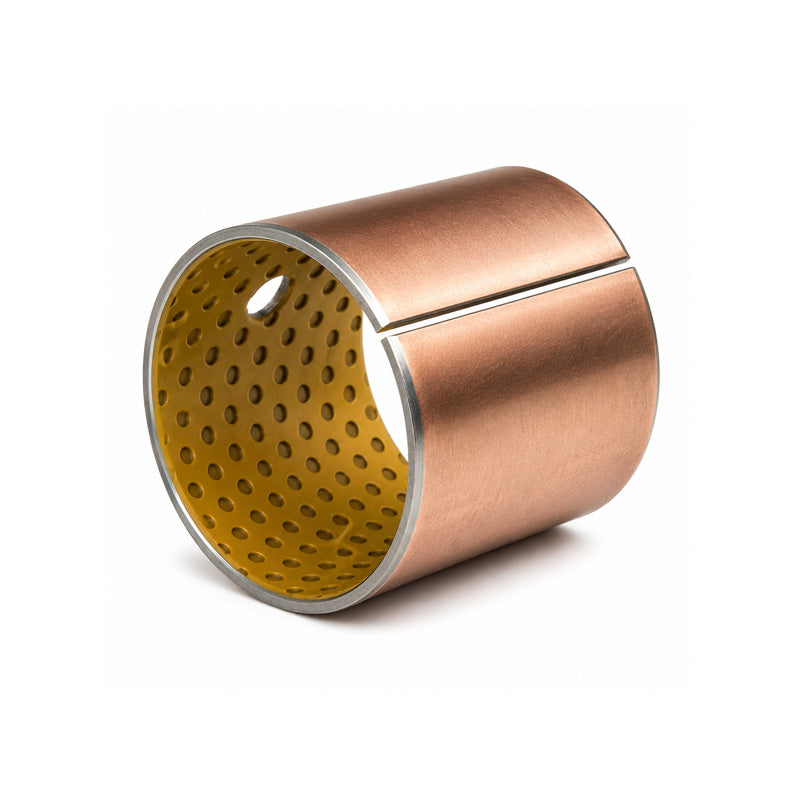

• MB6060X Bronze Backed Steel Bush 60x65x60mm
1 1

SKU: MB.6060.DLX

MB6060X Bronze Backed Steel Bush 60x65x60mm

MB6060X Bronze Backed Steel Bush 60x65x60mm
$11.17 ex VAT
$11.17 ex VAT
Sale Sold out

Equivalent to: PAP6060P11

In stock

Price Break
9+ $7.48
19+ $7.06
29+ $6.98
39+ $6.89
49+ $6.81
69+ $6.73
99+ $6.31
199+ $6.22
249+ $6.14
499+ $6.05
999+ $5.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
60mm
Outside Diameter:
65mm
Length:
60mm
Technical
d 60mm
D 65mm
b 60mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer
Maximum static load 140 N/mm<sup>2</sup>
Maximum dynamic load 70 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s with grease
Operating temperature -40&deg;C to +110&deg; C
Intermittent maximum temperature 130&deg; C
Thermal conductivity 2 W/mK
Coefficient of friction 0.05 to 0.12 with grease
Recommended housing tolerance H7
Recommended shaft tolerance h8
Recommended shaft finish HB &gt; 200
Recommended shaft hardness HB &gt; 200
