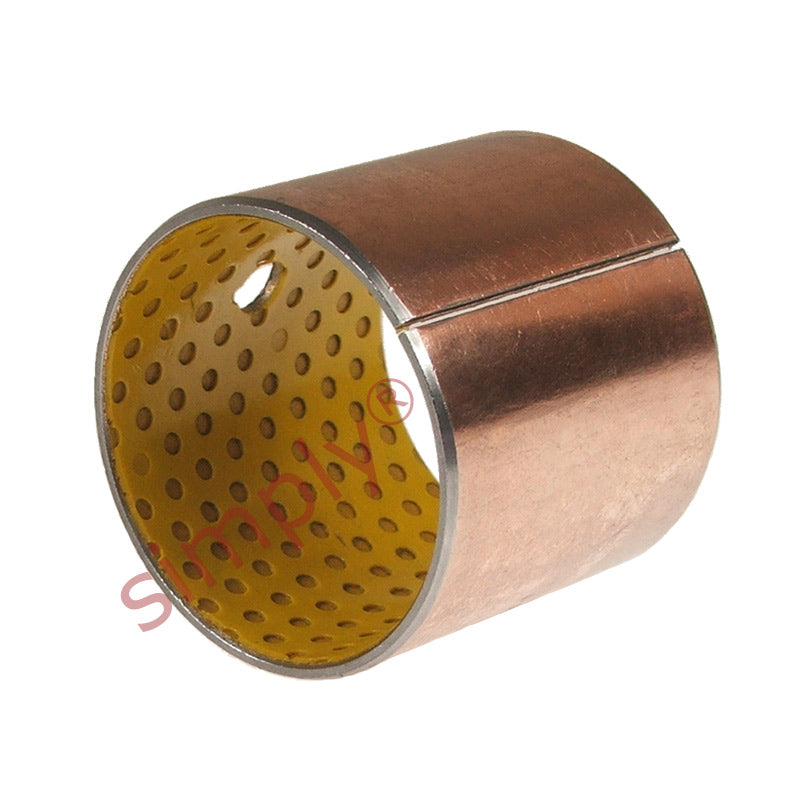

• MB6540X Bronze Backed Steel Bush 65x70x40mm
1 1

SKU: MB.6540.DLX

MB6540X Bronze Backed Steel Bush 65x70x40mm

MB6540X Bronze Backed Steel Bush 65x70x40mm
$9.45 ex VAT
$9.45 ex VAT
Sale Sold out

Equivalent to: PAP6540P20

In stock

Price Break
9+ $6.33
19+ $5.97
29+ $5.90
39+ $5.83
49+ $5.76
69+ $5.69
99+ $5.33
199+ $5.26
249+ $5.19
499+ $5.12
999+ $4.98

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
65mm
Outside Diameter:
70mm
Length:
40mm
Technical
d 65mm
D 70mm
b 40mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer
Maximum static load 140 N/mm<sup>2</sup>
Maximum dynamic load 70 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s with grease
Operating temperature -40&deg;C to +110&deg; C
Intermittent maximum temperature 130&deg; C
Thermal conductivity 2 W/mK
Coefficient of friction 0.05 to 0.12 with grease
Recommended housing tolerance H7
Recommended shaft tolerance h8
Recommended shaft finish HB &gt; 200
Recommended shaft hardness HB &gt; 200
