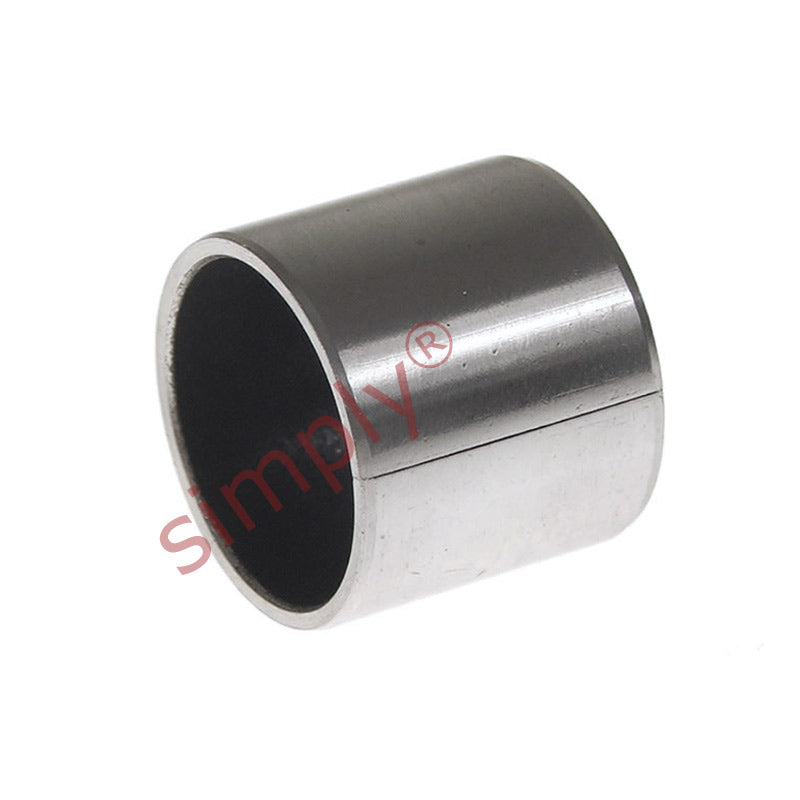

• MB8040D Wrapped Steel Plain Bush 80x85x40mm
1 1

SKU: MB.8040.DLU

MB8040D Wrapped Steel Plain Bush 80x85x40mm

MB8040D Wrapped Steel Plain Bush 80x85x40mm
$16.49 ex VAT
$16.49 ex VAT
Sale Sold out

Equivalent to: PAP8040P10

In stock

Price Break
9+ $11.05
19+ $10.43
29+ $10.30
39+ $10.18
49+ $10.05
69+ $9.93
99+ $9.31
199+ $9.19
249+ $9.06
499+ $8.94
999+ $8.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
80mm
Outside Diameter:
85mm
Length:
40mm
Technical
d 80mm
D 85mm
b 40mm
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 200
