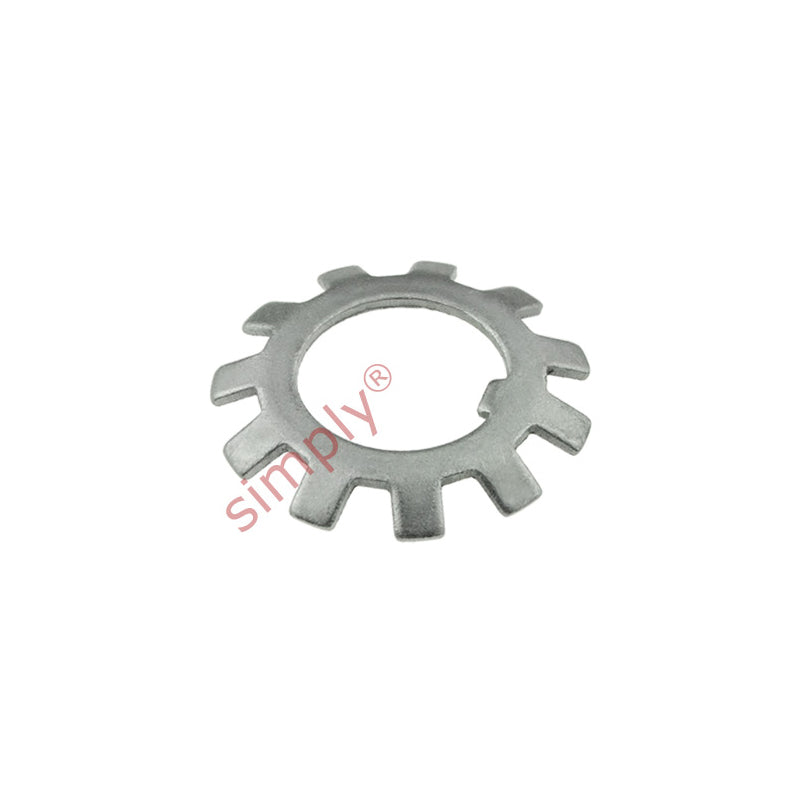

MB27 Locking Tab Washer 135x185x2mm

Name: MB27 Locking Tab Washer 135x185x2mm
Brand: Major Brand
SKU: MB27-MB
Price: 15.29 USD
Availability: InStock

$15.29 ex VAT

Sale Sold out

In stock

Price Break

10+ $10.24

19+ $9.67

29+ $9.55

39+ $9.44

49+ $9.32

74+ $9.21

99+ $8.63

199+ $8.52

249+ $8.40

499+ $8.29

999+ $8.06

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 135mm

Technical

d	135mm
d1	160mm
d2	185mm
B	2mm
f	14mm
M	130mm
Weight	140 g
