• MB34 Locking Tab Washer 170x232x2.5mm
1 1

SKU: MB34-MB

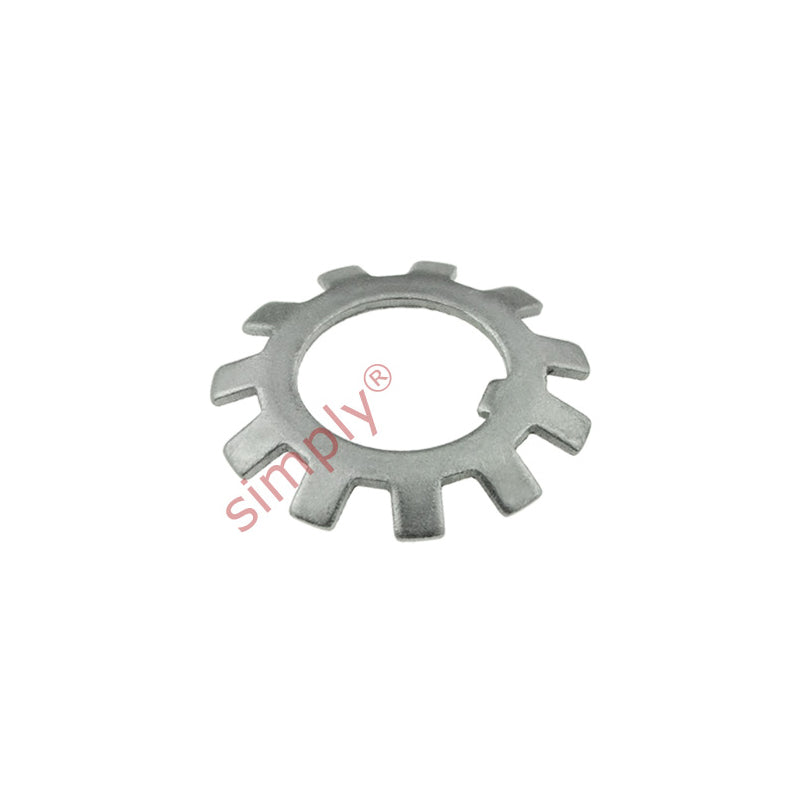

MB34 Locking Tab Washer 170x232x2.5mm

MB34 Locking Tab Washer 170x232x2.5mm
$24.81 ex VAT
$24.81 ex VAT
Sale Sold out

In stock

Price Break
10+ $16.62
19+ $15.68
29+ $15.50
39+ $15.31
49+ $15.12
74+ $14.94
99+ $14.00
199+ $13.82
249+ $13.63
499+ $13.44
999+ $13.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
170mm
Technical
d 170mm
d1 193mm
d2 232mm
B 2.5mm
f 18mm
M 164mm
Weight 240 g
