SKU: MBL-M06-MB

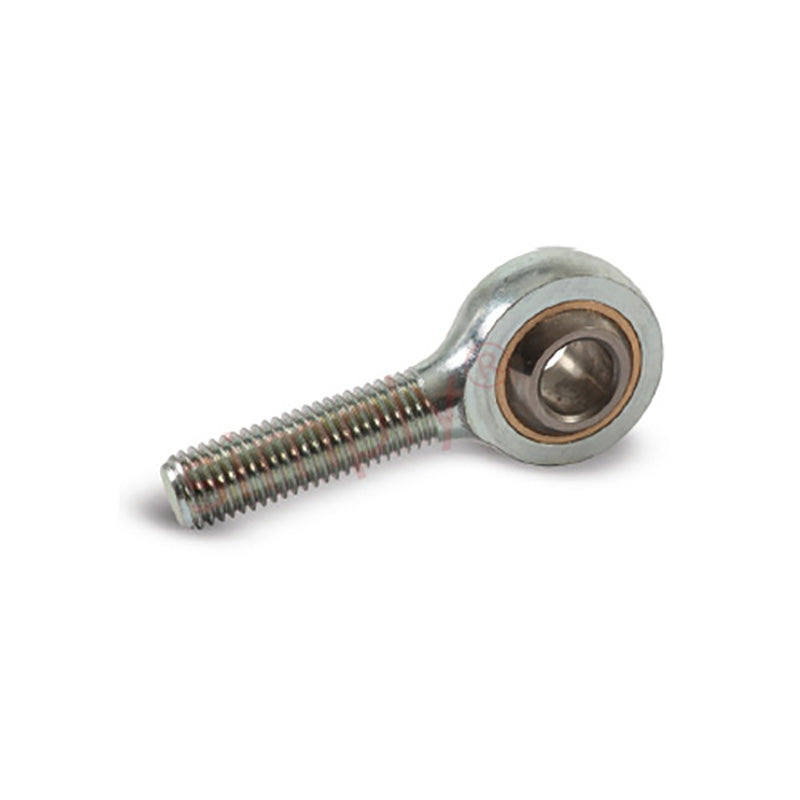

Branded MBL-M06 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Male Rod End M6x1 Thread

Name: Branded MBL-M06 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Male Rod End M6x1 Thread
Brand: Major Brand
SKU: MBL-M06-MB
Price: 10.76 USD
Availability: InStock

$10.76 ex VAT

Sale Sold out

In stock

Price Break

10+ $7.21

19+ $6.80

29+ $6.72

39+ $6.64

49+ $6.56

74+ $6.48

99+ $6.07

199+ $5.99

249+ $5.91

499+ $5.83

999+ $5.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

MB Series Bronze Lined Maintenance Required Rod Ends with Male Thread: The MB series are a standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Suitable for high precision motion transfer applications and extended wear life.
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: Bronze SAE660 and oil impregnated sintered bronze. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C.
Operating Temperature Range: Operating temperature range -34c to +149c
Benefits: Low friction, available in metric and imperial thread and bore sizes, extended wear life

Brand / Quality:: Major Brand - High Quality
Thread Size:: M6x1
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: Bronze Lined

Technical

Bore size	6mm
Thread	M6x1
W	9mm
H	6.75mm
D	18mm
L1	36mm
L2	22mm
O	9.3mm
Static load	6820 N
