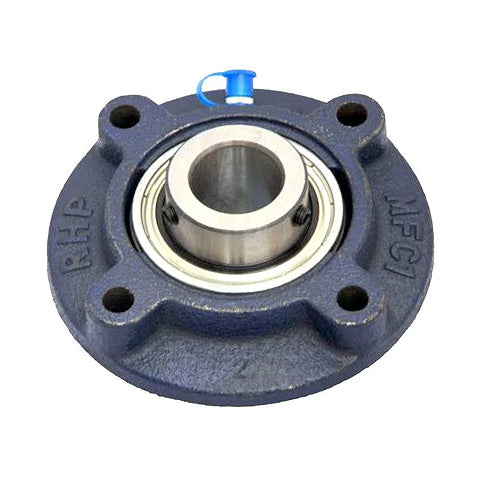

• RHP MFC1-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
1 1

SKU: MFC1.1/2-RHP

RHP MFC1-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert

RHP MFC1-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/2 inch Insert
$127.78 ex VAT
$127.78 ex VAT
Sale Sold out

In stock

Price Break
10+ $85.59
20+ $80.78
30+ $79.82
40+ $78.86
50+ $77.89
75+ $76.93
100+ $72.12
200+ $71.16
250+ $70.20
500+ $69.24
1000+ $67.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
MFC
Pitch Circle Diameter:
111.13mm = 4.375 (4-3/8) inch
Technical
Bore 1-1/2 inch
L 5.252 inch
H 3.625 inch
J 4.375 inch
G 0.375 inch
A1 1.5 inch
A4 0.748 inch
A5 0.252 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.9 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
