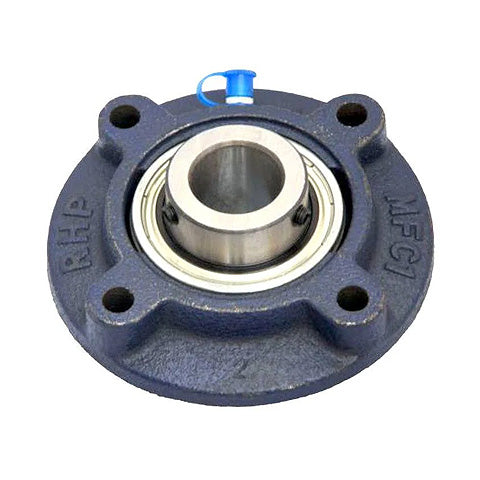

• RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
1 1

SKU: MFC1.1/4R-RHP

RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert

RHP MFC1-1/4R Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert
$103.65 ex VAT
$103.65 ex VAT
Sale Sold out

In stock

Price Break
10+ $69.43
20+ $65.53
30+ $64.75
40+ $63.97
50+ $63.19
75+ $62.41
100+ $58.51
200+ $57.73
250+ $56.95
500+ $56.17
1000+ $54.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
MFC
Pitch Circle Diameter:
92.08mm = 3.625 (3-5/8) inch
Technical
Bore 1-1/4 inch
L 4.374 inch
H 3 inch
J 3.625 inch
G 0.3125 inch
A1 1.312 inch
A4 0.827 inch
A5 0.252 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
