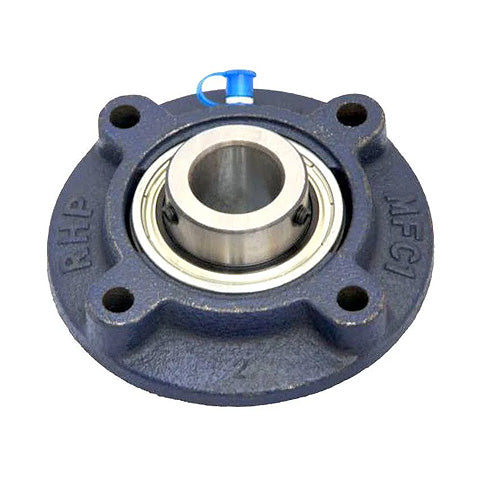

RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
RHP MFC1 Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
Regular price
$103.65
ex VAT
Regular price
Sale price
$103.65
ex VAT
In stock
Price Break
10+
$69.43
20+
$65.53
30+
$64.75
40+
$63.97
50+
$63.19
75+
$62.41
100+
$58.51
200+
$57.73
250+
$56.95
500+
$56.17
1000+
$54.61
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- MFC
- Pitch Circle Diameter:
- 92.08mm = 3.625 (3-5/8) inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 4.374 inch |
| H | 3 inch |
| J | 3.625 inch |
| G | 0.3125 inch |
| A1 | 1.312 inch |
| A4 | 0.827 inch |
| A5 | 0.252 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
