SKU: MFC2.1/2-RHP

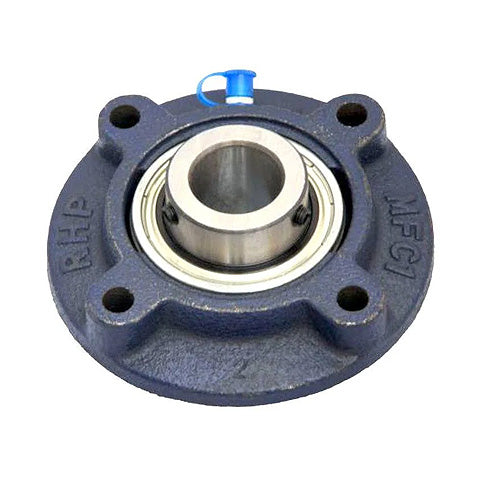

RHP MFC2-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-1/2 inch Insert
RHP MFC2-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-1/2 inch Insert
Regular price
$293.27
ex VAT
Regular price
Sale price
$293.27
ex VAT
In stock
Price Break
10+
$196.44
20+
$185.40
30+
$183.20
40+
$180.99
50+
$178.78
75+
$176.57
100+
$165.54
200+
$163.33
250+
$161.12
500+
$158.92
1000+
$154.50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 165.1mm = 6.5 (6-1/2) inch
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| L | 7.626 inch |
| H | 5.5 inch |
| J | 6.5 inch |
| G | 0.5 inch |
| A1 | 1.812 inch |
| A4 | 0.626 inch |
| A5 | 0.5 inch |
| B | 2.938 inch |
| s | 1.19 inch |
| d1 | 3.425 inch |
| Dynamic load | 61000 N |
| Static load | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 4.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-2-1/2G+insonly">1070-2-1/2G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
