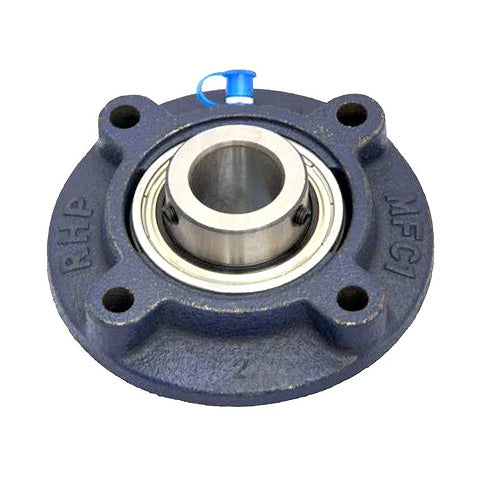

• RHP MFC2-11/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-11/16 inch Insert
1 1

SKU: MFC2.11/16-RHP

RHP MFC2-11/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-11/16 inch Insert

RHP MFC2-11/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 2-11/16 inch Insert
$347.56 ex VAT
$347.56 ex VAT
Sale Sold out

In stock

Price Break
10+ $232.81
20+ $219.73
30+ $217.11
40+ $214.50
50+ $211.88
75+ $209.27
100+ $196.19
200+ $193.57
250+ $190.95
500+ $188.34
1000+ $183.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
68.26mm = 2.687 (2-11/16) inch
Style:
MFC
Pitch Circle Diameter:
190.5mm = 7.5 (7-1/2) inch
Technical
Bore 2-11/16 inch
L 8.748 inch
H 6.375 inch
J 7.5 inch
G 0.625 inch
A1 2 inch
A4 0.827 inch
A5 0.5 inch
B 3.062 inch
s 1.314 inch
d1 3.622 inch
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 5.9 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-11/16G+insonly">1075-2-11/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
