• RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
1 1

SKU: MFC25-RHP

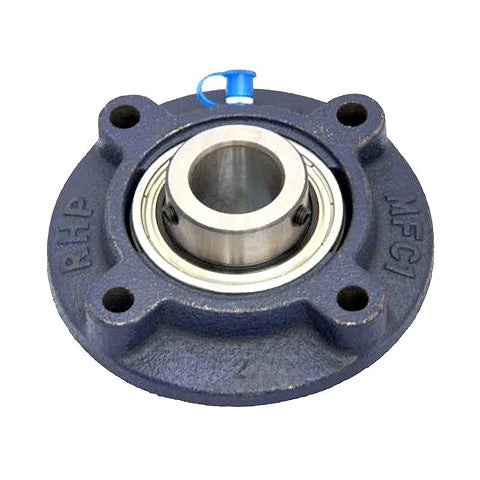

RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

RHP MFC25 Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
$97.51 ex VAT
$97.51 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.32
20+ $61.65
30+ $60.91
40+ $60.18
50+ $59.45
75+ $58.71
100+ $55.04
200+ $54.31
250+ $53.57
500+ $52.84
1000+ $51.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
MFC
Pitch Circle Diameter:
92.08mm
Technical
Bore 25mm
L 111.1mm
H 76.2mm
J 92.08mm
G 8mm
A1 33.32mm
A4 21mm
A5 6.4mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
Reviews
View full details
