SKU: MFC3.1/2-RHP
RHP MFC3-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/2 inch Insert
RHP MFC3-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/2 inch Insert
Regular price
$707.07
ex VAT
Regular price
Sale price
$707.07
ex VAT
In stock
Price Break
10+
$473.61
20+
$447.00
30+
$441.68
40+
$436.36
50+
$431.04
75+
$425.72
100+
$399.11
200+
$393.79
250+
$388.47
500+
$383.15
1000+
$372.50
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 219.08mm = 8.625 inch

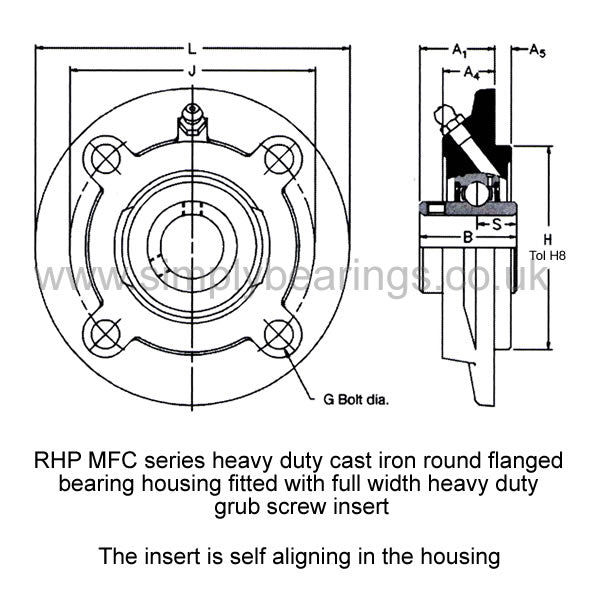

Technical
Technical
| Bore | 3-1/2 inch |
|---|---|
| L | 10.252 inch |
| H | 7.375 inch |
| J | 8.625 inch |
| G | 0.75 inch |
| A1 | 2.656 inch |
| A4 | 1.157 inch |
| A5 | 0.5 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| Dynamic load | 96000 N |
| Static load | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 9.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-1/2G+insonly">1090-3-1/2G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
