SKU: MFC3.7/16-RHP

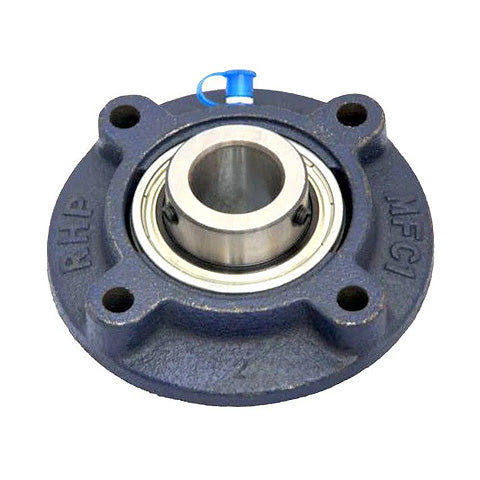

RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert

RHP MFC3-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-7/16 inch Insert
Regular price $707.07 ex VAT
Regular price Sale price $707.07 ex VAT
Sale Sold out

In stock

Price Break
10+ $473.61
20+ $447.00
30+ $441.68
40+ $436.36
50+ $431.04
75+ $425.72
100+ $399.11
200+ $393.79
250+ $388.47
500+ $383.15
1000+ $372.50
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-7/16 inch
L 10.252 inch
H 7.375 inch
J 8.625 inch
G 0.75 inch
A1 2.656 inch
A4 1.157 inch
A5 0.5 inch
B 3.781 inch
s 1.564 inch
d1 4.396 inch
Dynamic load 96000 N
Static load 71500 N
Rec max speed 1900 rpm
Weight 9.8 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-7/16G+insonly">1090-3-7/16G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
