SKU: MFC35-RHP

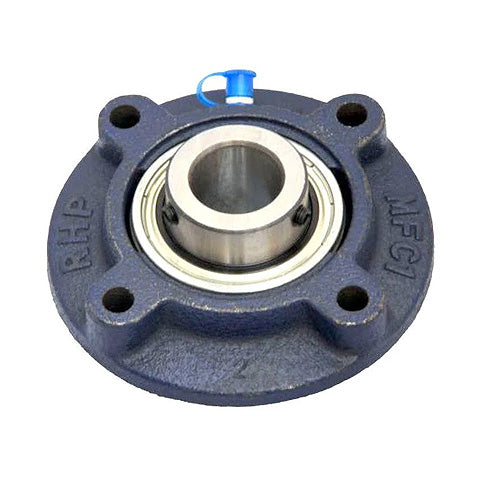

RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP MFC35 Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
$120.46
ex VAT
Regular price
Sale price
$120.46
ex VAT
In stock
Price Break
10+
$80.69
20+
$76.15
30+
$75.25
40+
$74.34
50+
$73.44
75+
$72.53
100+
$68.00
200+
$67.09
250+
$66.18
500+
$65.28
1000+
$63.46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- MFC
- Pitch Circle Diameter:
- 111.12mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 133.4mm |
| H | 92.07mm |
| J | 111.12mm |
| G | 10mm |
| A1 | 38.1mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-35G+insonly">1040-35G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
