SKU: MFC45-RHP

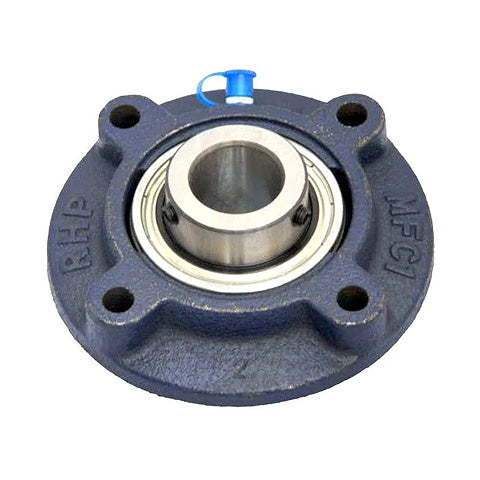

RHP MFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP MFC45 Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
$150.57
ex VAT
Regular price
Sale price
$150.57
ex VAT
In stock
Price Break
10+
$100.86
20+
$95.19
30+
$94.06
40+
$92.92
50+
$91.79
75+
$90.66
100+
$84.99
200+
$83.86
250+
$82.72
500+
$81.59
1000+
$79.32
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- MFC
- Pitch Circle Diameter:
- 130.18mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155.6mm |
| H | 107.95mm |
| J | 130.18mm |
| G | 10mm |
| A1 | 39.67mm |
| A4 | 19mm |
| A5 | 6.4mm |
| B | 51.59mm |
| s | 19.1mm |
| d1 | 62.2mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
