SKU: MFC70-RHP

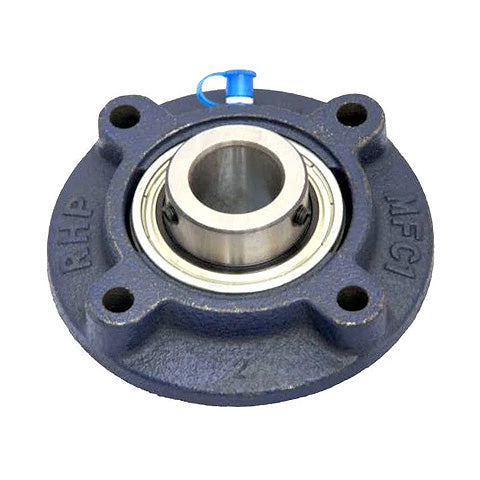

RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert
RHP MFC70 Four Bolt Round Cast Iron Flanged Bearing Unit and 70mm Insert
Regular price
$327.63
ex VAT
Regular price
Sale price
$327.63
ex VAT
In stock
Price Break
10+
$219.46
20+
$207.13
30+
$204.66
40+
$202.20
50+
$199.73
75+
$197.26
100+
$184.94
200+
$182.47
250+
$180.00
500+
$177.54
1000+
$172.61
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- MFC
- Pitch Circle Diameter:
- 190.5mm
Technical
Technical
| Bore | 70mm |
|---|---|
| L | 222.2mm |
| H | 161.92mm |
| J | 190.5mm |
| G | 16mm |
| A1 | 50.8mm |
| A4 | 21mm |
| A5 | 12.7mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 5.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-70G+insonly">1075-70G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
