SKU: MFC90-RHP

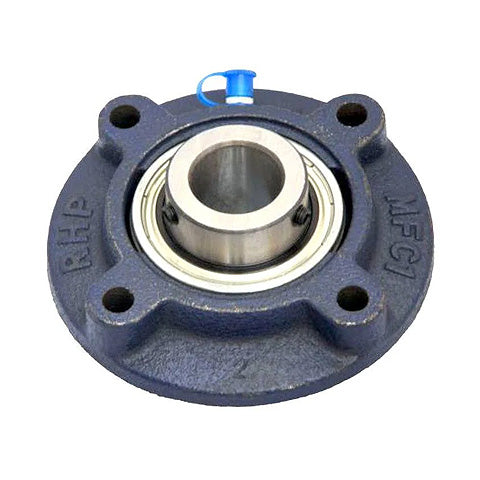

RHP MFC90 Four Bolt Round Cast Iron Flanged Bearing Unit and 90mm Insert
RHP MFC90 Four Bolt Round Cast Iron Flanged Bearing Unit and 90mm Insert
Regular price
$666.54
ex VAT
Regular price
Sale price
$666.54
ex VAT
In stock
Price Break
10+
$446.47
20+
$421.39
30+
$416.37
40+
$411.35
50+
$406.34
75+
$401.32
100+
$376.24
200+
$371.22
250+
$366.20
500+
$361.19
1000+
$351.15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 90mm
- Style:
- MFC
- Pitch Circle Diameter:
- 219.08mm
Technical
Technical
| Bore | 90mm |
|---|---|
| L | 260.4mm |
| H | 187.32mm |
| J | 219.08mm |
| G | 20mm |
| A1 | 67.46mm |
| A4 | 29.4mm |
| A5 | 12.7mm |
| B | 96.04mm |
| s | 39.73mm |
| d1 | 111.66mm |
| Dynamic load | 96000 N |
| Static load | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 9.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-90G+insonly">1090-90G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
