SKU: MFM-0811 -08

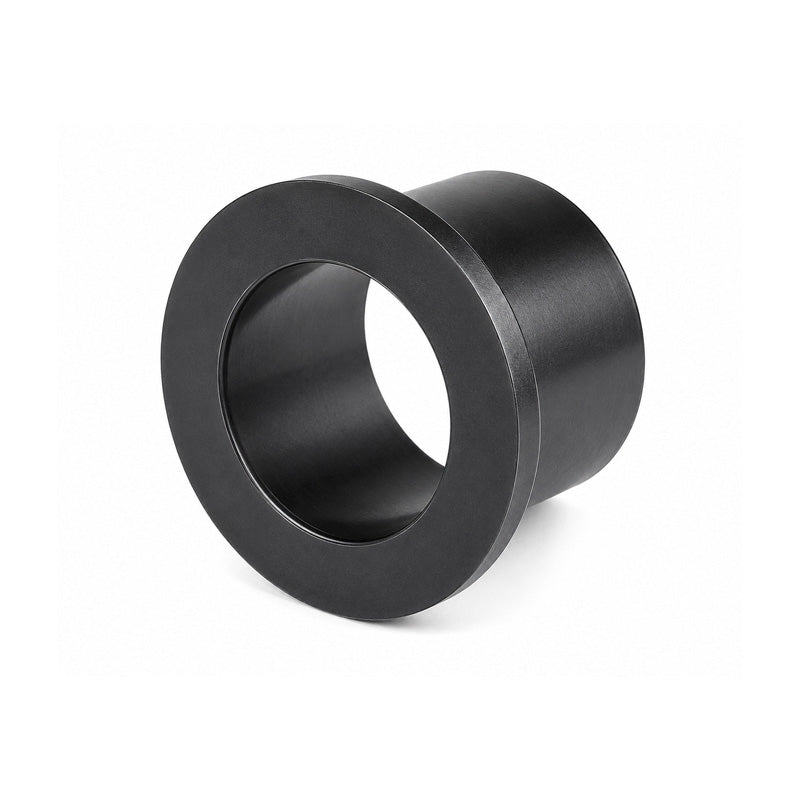

Iglidur MFM0811 08 Plastic Flanged Bush 8x11x8mm
Iglidur MFM0811 08 Plastic Flanged Bush 8x11x8mm
Out of stock
Share this product
Description
Description
|
IGUS Iglidur® M250 Series Plastic Bush Bearing: Made from plastic, these bush style plastic bearings are thick and robust making them particularly suited for vibration dampening, in applications with low speeds. They balance edge loads very well and help to minimize noise. Benefits: Insensitive to misalignment, high impact strength, excellent vibration dampening |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 11mm
- Width:
- 8mm
Technical
Technical
| Inside Diameter d1 | 8mm |
|---|---|
| Outside Diameter d2 | 11mm |
| Length b1 | 8mm |
| Chamfer f | 0.5mm |
| d1 Tolerance* | +0.04/+0.13 |
| Thickness* | <1mm: chamfer = 20deg |
| d3 | 13mm |
| Flange Thickness b2 | 2mm |
| Temperature Min/Max | -40/+80 degC |
