SKU: MP-03-MB

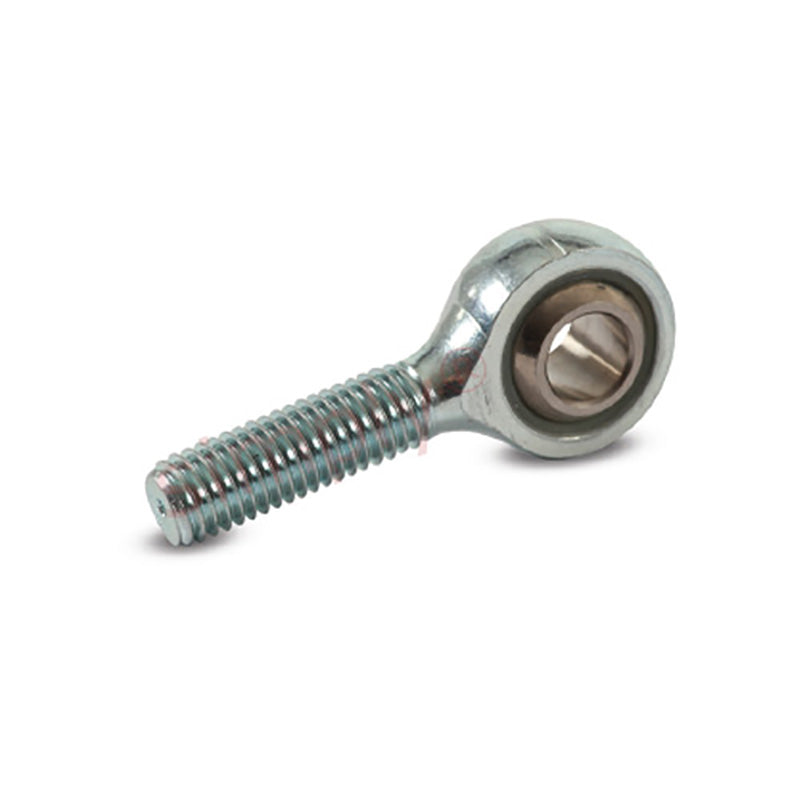

Branded MP-03 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/16 UNF Thread
- Regular price
- $13.85 ex VAT
- Sale price
- $13.85
- Regular price
-
In stock
Quantity Price Breaks
10
$12.33
19
$11.63
29
$11.50
39
$11.36
49
$11.22
74
$11.08
99
$10.39
199
$10.25
249
$10.11
499
$9.97
999
$9.70
SKU:
MP-03-MB
Branded MP-03 Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 3/16 UNF Thread
- Regular price
- $13.85 ex VAT
- Sale price
- $13.85
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 3/16 inch |
| Thread | = | 3/16 UNF |
| W | = | 0.312 inch |
| H | = | 0.25 inch |
| D | = | 0.625 inch |
| L1 | = | 1.25 inch |
| L2 | = | 0.75 inch |
| O | = | 0.306 inch |
| Static load | = | 5340 N |
