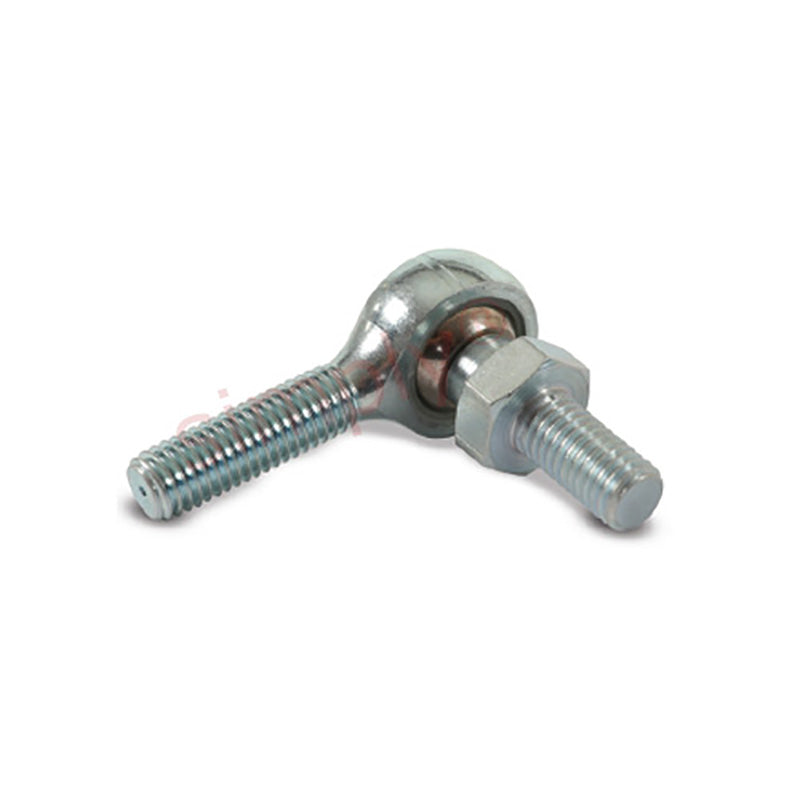

Branded MP-03S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days

SKU: MP-03S-MB

Branded MP-03S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days

$18.99 ex VAT
$18.99
ex VAT
In stock

Quantity Price Breaks

10 $16.90
19 $15.95
29 $15.76
39 $15.57
49 $15.38
74 $15.19
99 $14.24
199 $14.05
249 $13.86
499 $13.67
999 $13.29
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-03S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days
SKU: MP-03S-MB

Branded MP-03S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 3/16 UNF Thread - Allow 7-10 Days

$18.99 ex VAT
$18.99
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 3/16UNF
Thread = 3/16 UNF
A = 0.5 inch
B = 0.516 inch
C = 0.437 inch
K = 0.312 inch
Static load = 1200 N
