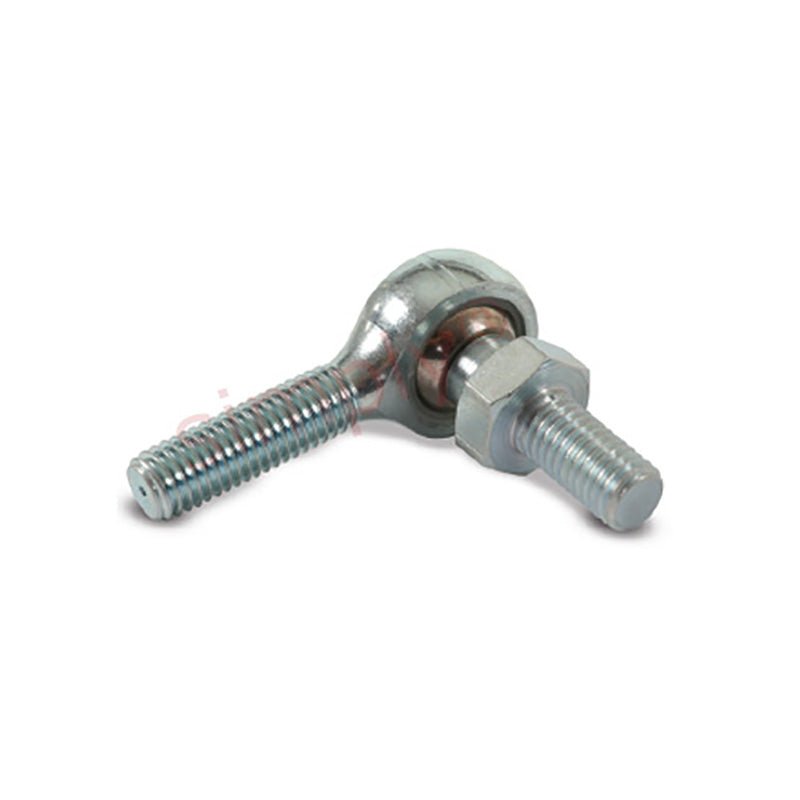

• Branded MP-07S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days
1 1

SKU: MP-07S-MB

Branded MP-07S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days

Branded MP-07S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 7/16 UNF Thread - Allow 7-10 Days
$38.25 ex VAT
$38.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $25.62
19+ $24.18
29+ $23.89
39+ $23.61
49+ $23.32
74+ $23.03
99+ $21.59
199+ $21.30
249+ $21.02
499+ $20.73
999+ $20.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.
Brand / Quality:
Major Brand - High Quality
Thread Size:
7/16 UNF
Thread M / F:
Male
Thread Direction:
Right Hand
Material:
Nylon Lined

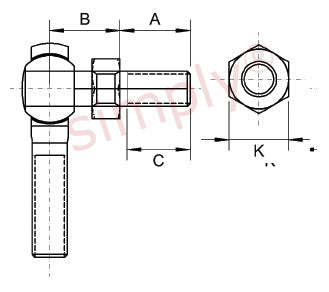

Technical
Stud size 7/16 UNF
Thread 7/16 UNF
A 1.125 inch
B 0.843 inch
C 1 inch
K 0.625 inch
Static load 5720 N
