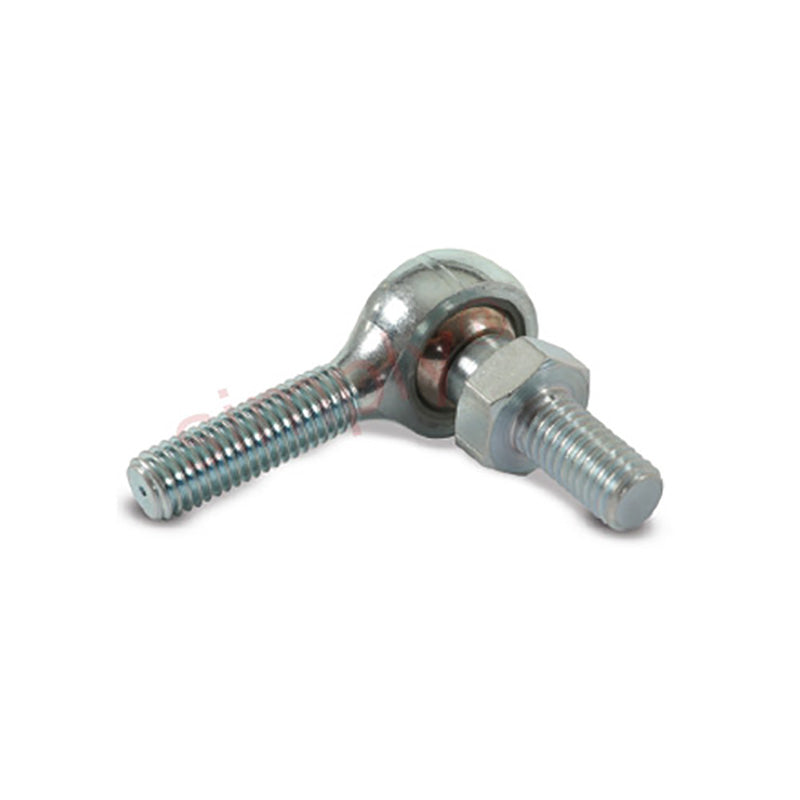

Branded MP-08S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 1/2 UNF Thread - Allow 7-10 Days

SKU: MP-08S-MB

Branded MP-08S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 1/2 UNF Thread - Allow 7-10 Days

$33.39 ex VAT
$33.39
ex VAT
In stock

Quantity Price Breaks

10 $29.72
19 $28.05
29 $27.71
39 $27.38
49 $27.05
74 $26.71
99 $25.04
199 $24.71
249 $24.37
499 $24.04
999 $23.37
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-08S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 1/2 UNF Thread - Allow 7-10 Days
SKU: MP-08S-MB

Branded MP-08S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 1/2 UNF Thread - Allow 7-10 Days

$33.39 ex VAT
$33.39
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 1/2 UNF
Thread = 1/2 UNF
A = 1.125 inch
B = 0.875 inch
C = 1 inch
K = 0.625 inch
Static load = 7200 N
