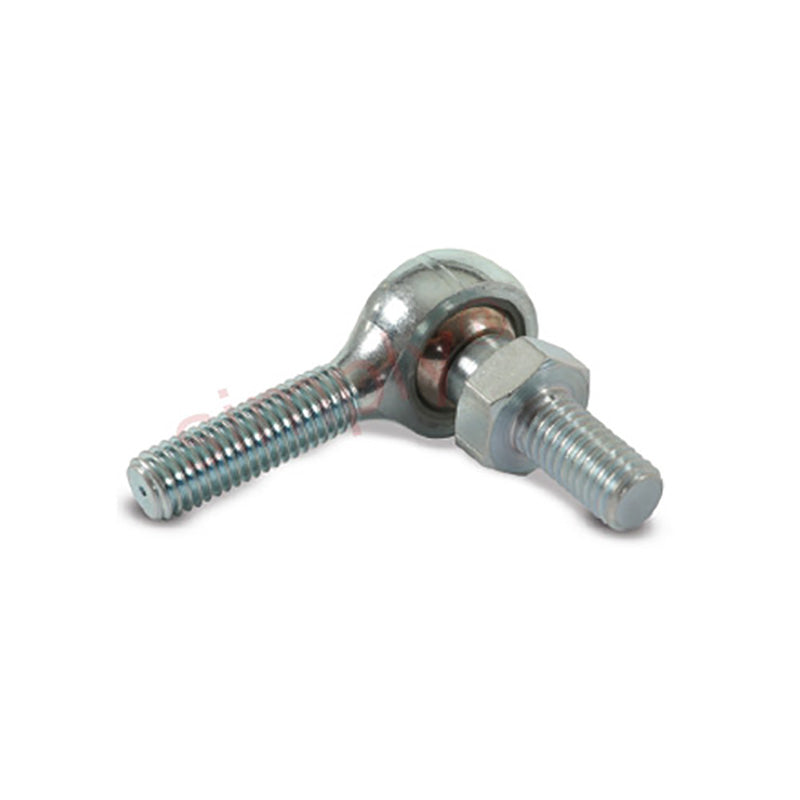

Branded MP-10S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/8 UNF Thread

SKU: MP-10S-MB

Branded MP-10S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/8 UNF Thread

$35.52 ex VAT
$35.52
ex VAT
Not in stock

Quantity Price Breaks

10 $31.61
19 $29.84
29 $29.48
39 $29.13
49 $28.77
74 $28.42
99 $26.64
199 $26.28
249 $25.93
499 $25.57
999 $24.86
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-10S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/8 UNF Thread
SKU: MP-10S-MB

Branded MP-10S Right Hand Imperial Steel / Nylon Lined Maintenance Free Studded Male Rod End 5/8 UNF Thread

$35.52 ex VAT
$35.52
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = 5/8 UNF
Thread = 5/8 UNF
A = 1.125 inch
B = 1 inch
C = 1 inch
K = 0.75 inch
Static load = 9000 N
