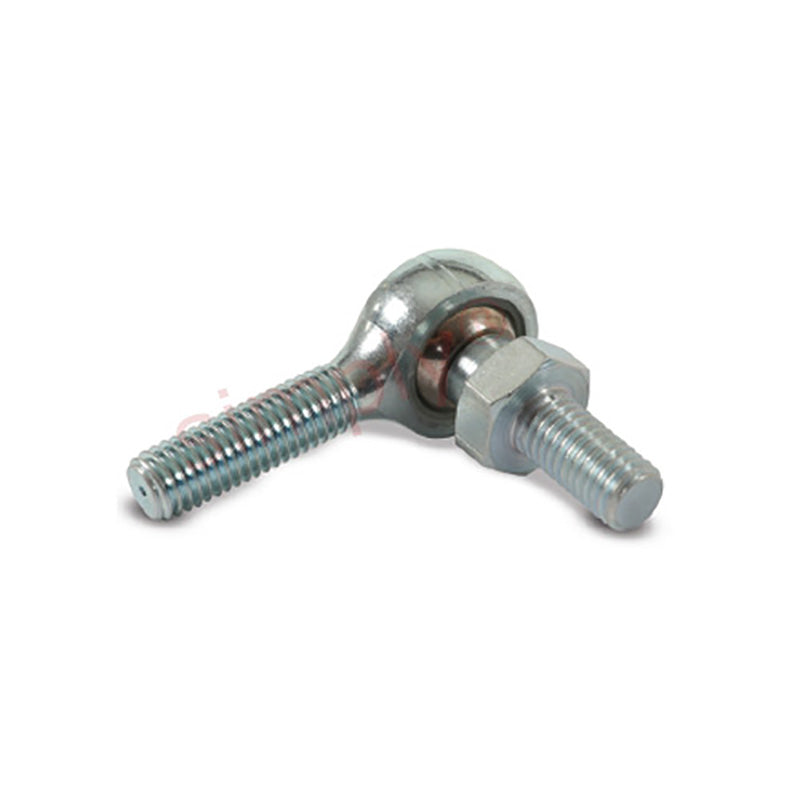

Branded MP-M14S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread - Allow 7-10 Days

SKU: MP-M14S-MB

Branded MP-M14S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread - Allow 7-10 Days

$32.26 ex VAT
$32.26
ex VAT
In stock

Quantity Price Breaks

10 $28.71
19 $27.10
29 $26.78
39 $26.45
49 $26.13
74 $25.81
99 $24.20
199 $23.87
249 $23.55
499 $23.23
999 $22.58
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded MP-M14S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread - Allow 7-10 Days
SKU: MP-M14S-MB

Branded MP-M14S Right Hand Metric Steel / Nylon Lined Maintenance Free Studded Male Rod End M14x2 Thread - Allow 7-10 Days

$32.26 ex VAT
$32.26
ex VAT

Description

MPS Series Nylon Lined Studded Male Rod End: These studded MPS series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance
Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/ clear) and stainless steel 303L.
Operating Temperature Range: Operating temperature range -30c to +170c
Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance.

Technical

Stud size = M14
Thread = M14x2
A = 28mm
B = 28mm
C = 25mm
K = 22mm
Static load = 7200 N
