SKU: MP-M16C-MB

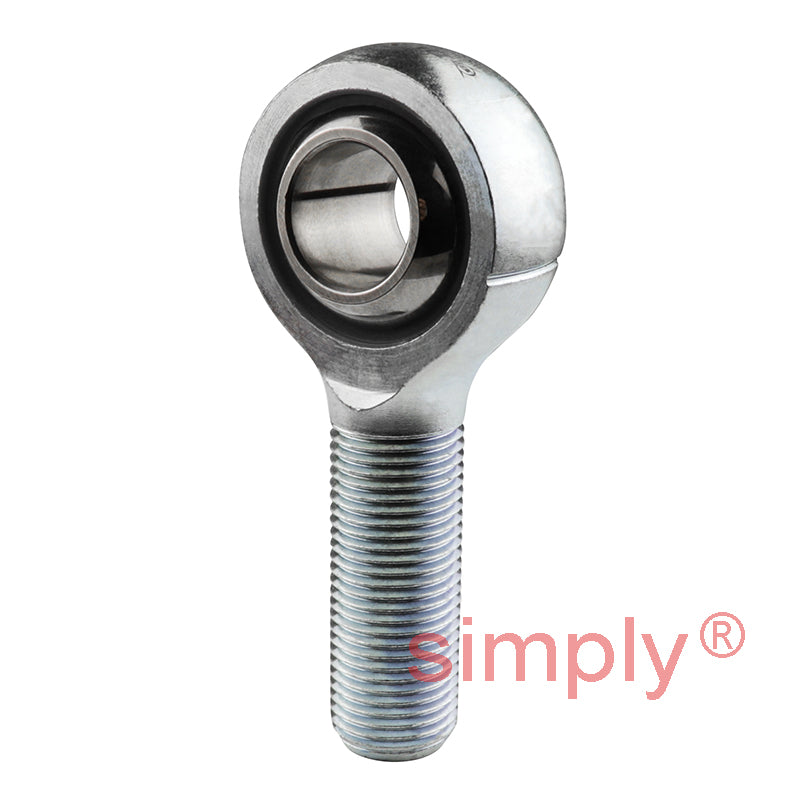

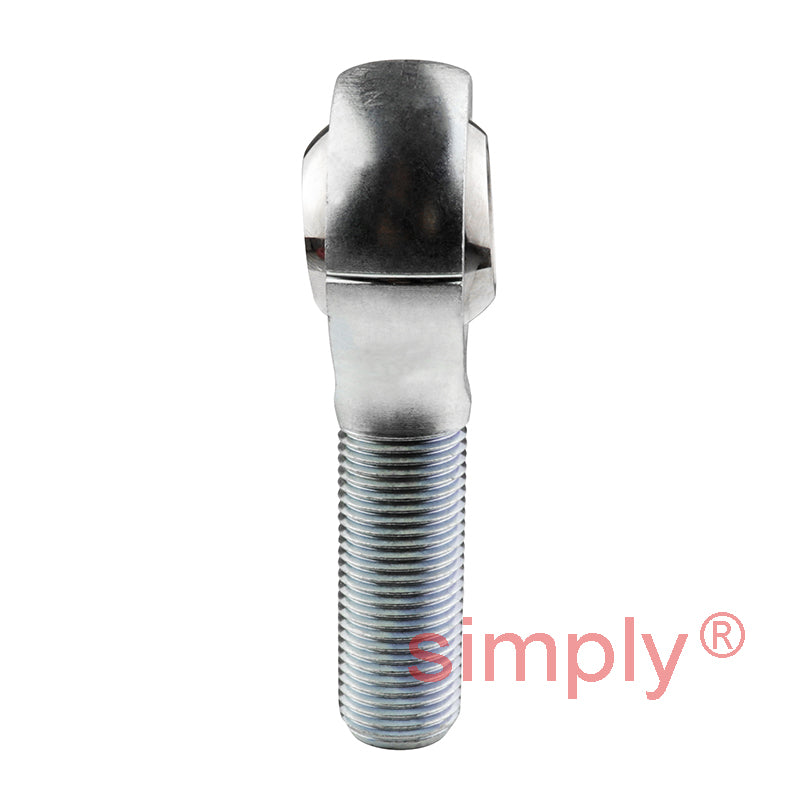

Branded MP-M16C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M16x1.5 Thread - Allow 7-10 Days
- Regular price
- $25.97 ex VAT
- Sale price
- $25.97
- Regular price
-
In stock
Quantity Price Breaks
10
$23.11
19
$21.81
29
$21.56
39
$21.30
49
$21.04
74
$20.78
99
$19.48
199
$19.22
249
$18.96
499
$18.70
999
$18.18
SKU:
MP-M16C-MB
Branded MP-M16C Right Hand Metric Steel / Nylon Lined Maintenance Free Plain Male Rod End M16x1.5 Thread - Allow 7-10 Days
- Regular price
- $25.97 ex VAT
- Sale price
- $25.97
- Regular price
-
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
Technical
| Bore size | = | 16mm |
| Thread | = | M16x1.5 |
| W | = | 21mm |
| H | = | 15mm |
| D | = | 38mm |
| L1 | = | 66mm |
| L2 | = | 40mm |
| O | = | 19.3mm |
| Static load | = | 37130 N |
