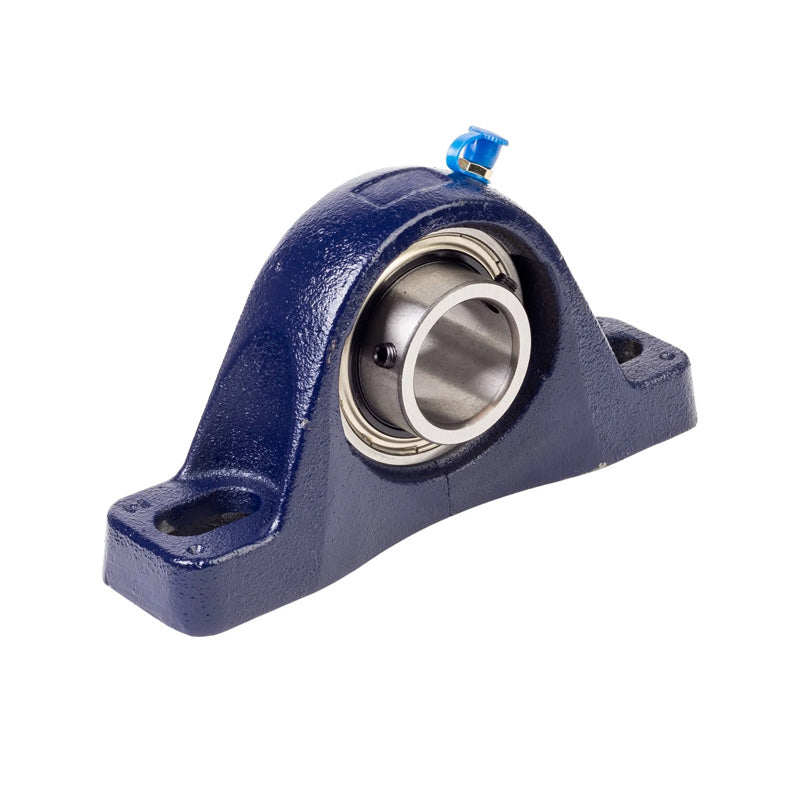

• RHP MP1-1/2 Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Insert
1 1

SKU: MP1.1/2-RHP

RHP MP1-1/2 Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Insert

RHP MP1-1/2 Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Insert
$98.19 ex VAT
$98.19 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.77
20+ $62.08
30+ $61.34
40+ $60.60
50+ $59.86
75+ $59.12
100+ $55.42
200+ $54.69
250+ $53.95
500+ $53.21
1000+ $51.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
MP
Bolt Hole Centres:
5.709-6.791 inch
Technical
Bore 1-1/2 inch
L 8.748 inch
H 2.312 inch
H1 0.886 inch
H2 4.594 inch
J max 6.791 inch
J min 5.709 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-1/2G+insonly">1045-1-1/2G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
