• RHP MP1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Insert
1 1

SKU: MP1.1/4-RHP

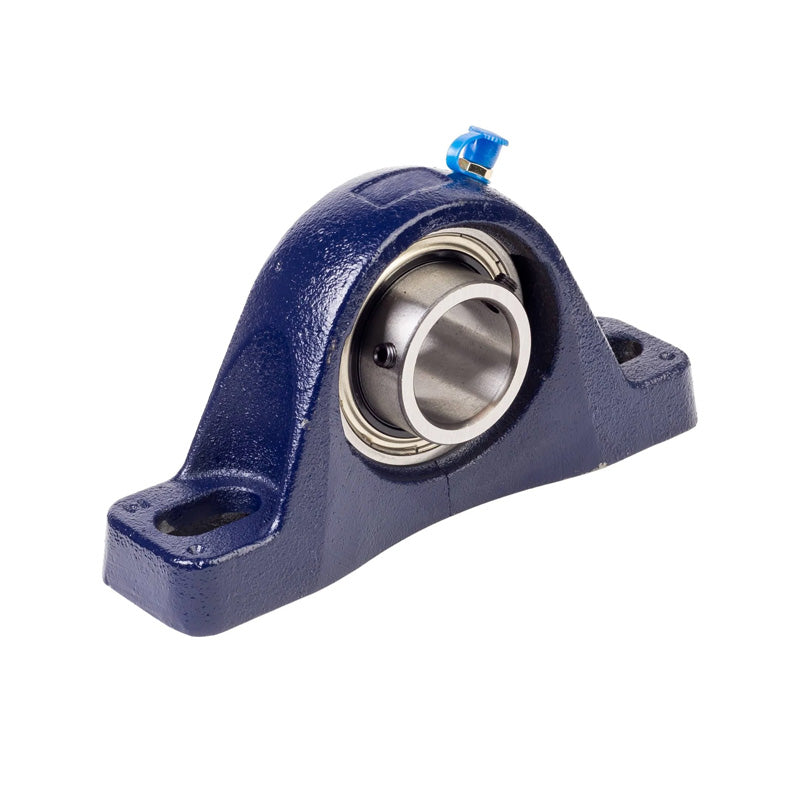

RHP MP1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Insert

RHP MP1-1/4 Two Bolt Cast Iron Pillow Block and 1-1/4 Bore Grub Screw Insert
$98.92 ex VAT
$98.92 ex VAT
Sale Sold out

In stock

Price Break
10+ $66.26
20+ $62.53
30+ $61.79
40+ $61.05
50+ $60.30
75+ $59.56
100+ $55.83
200+ $55.09
250+ $54.35
500+ $53.60
1000+ $52.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
MP
Bolt Hole Centres:
4.783-5.374 inch
Technical
Bore 1-1/4 inch
L 6.535 inch
H 1.874 inch
H1 0.689 inch
H2 3.661 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
