SKU: MP1.3/4-RHP

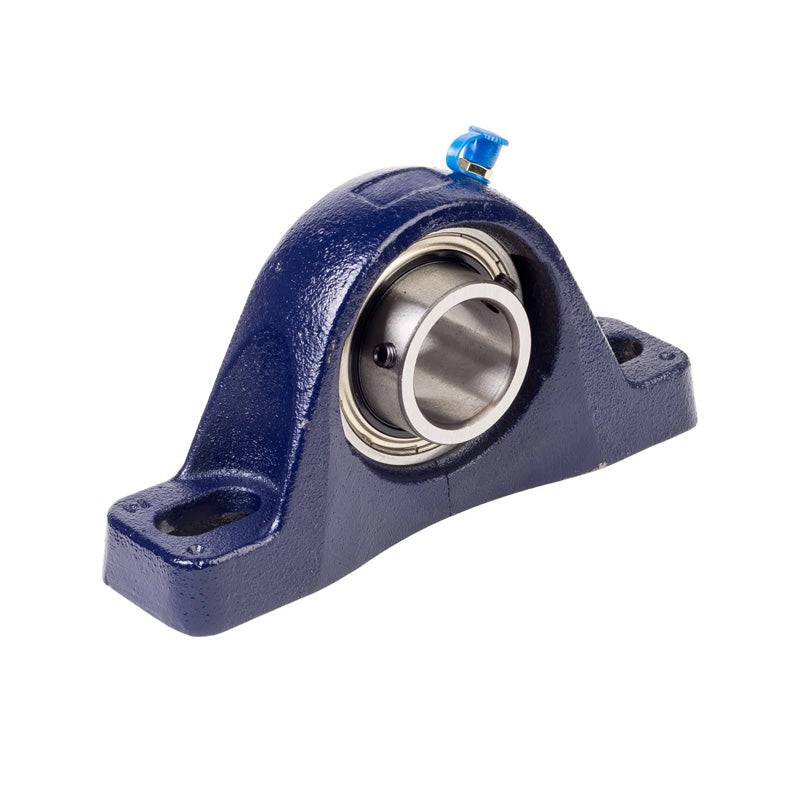

RHP MP1-3/4 Two Bolt Cast Iron Pillow Block and 1-3/4 Bore Grub Screw Insert

RHP MP1-3/4 Two Bolt Cast Iron Pillow Block and 1-3/4 Bore Grub Screw Insert
Regular price $126.11 ex VAT
Regular price Sale price $126.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $84.47
20+ $79.73
30+ $78.78
40+ $77.83
50+ $76.88
75+ $75.93
100+ $71.18
200+ $70.23
250+ $69.29
500+ $68.34
1000+ $66.44
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
L 8.748 inch
H 2.312 inch
H1 0.886 inch
H2 4.594 inch
J max 6.791 inch
J min 5.709 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
