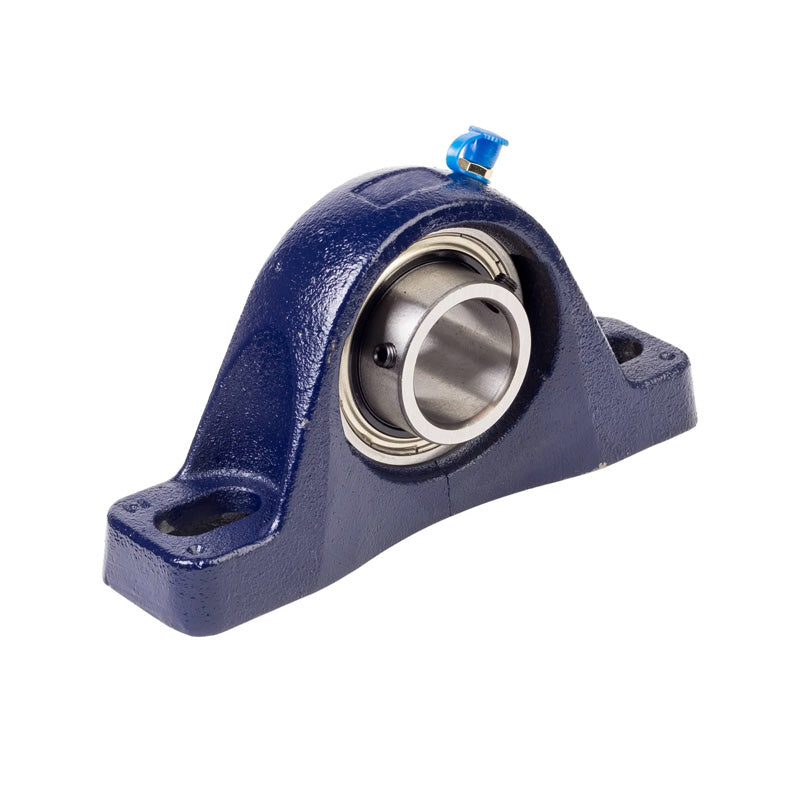

• RHP MP1-7/16 Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Grub Screw Insert
1 1

SKU: MP1.7/16-RHP

RHP MP1-7/16 Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Grub Screw Insert

RHP MP1-7/16 Two Bolt Cast Iron Pillow Block and 1-7/16 Bore Grub Screw Insert
$86.38 ex VAT
$86.38 ex VAT
Sale Sold out

In stock

Price Break
10+ $57.86
20+ $54.61
30+ $53.96
40+ $53.31
50+ $52.66
75+ $52.01
100+ $48.76
200+ $48.11
250+ $47.46
500+ $46.81
1000+ $45.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, insert extends to front and back
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
MP
Bolt Hole Centres:
5.315-6.3 inch
Technical
Bore 1-7/16 inch
L 8 inch
H 2.125 inch
H1 0.906 inch
H2 4.232 inch
J max 6.3 inch
J min 5.315 inch
G 0.5 inch
A 2.244 inch
A1 1.594 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.7 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
