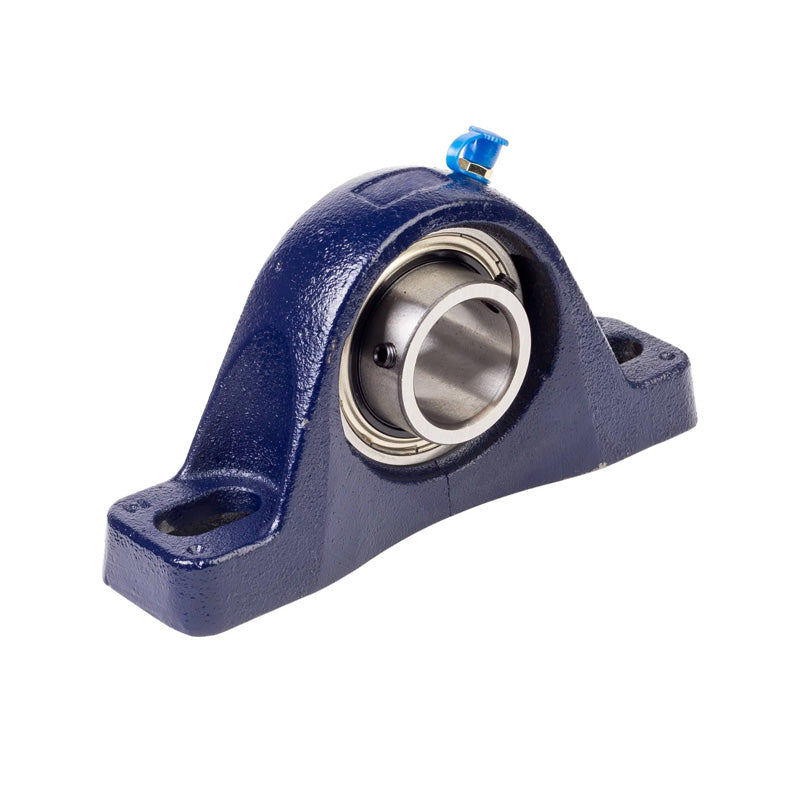

• RHP MP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Insert
1 1

SKU: MP1-RHP

RHP MP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Insert

RHP MP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Insert
$67.83 ex VAT
$67.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.43
20+ $42.88
30+ $42.37
40+ $41.86
50+ $41.35
75+ $40.84
100+ $38.29
200+ $37.78
250+ $37.27
500+ $36.75
1000+ $35.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
MP
Bolt Hole Centres:
4.272-5.02 inch
Technical
Bore 1 inch
L 6.319 inch
H 1.75 inch
H1 0.76 inch
H2 3.319 inch
J max 5.02 inch
J min 4.272 inch
G 0.5 inch
A 1.634 inch
A1 1.083 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
