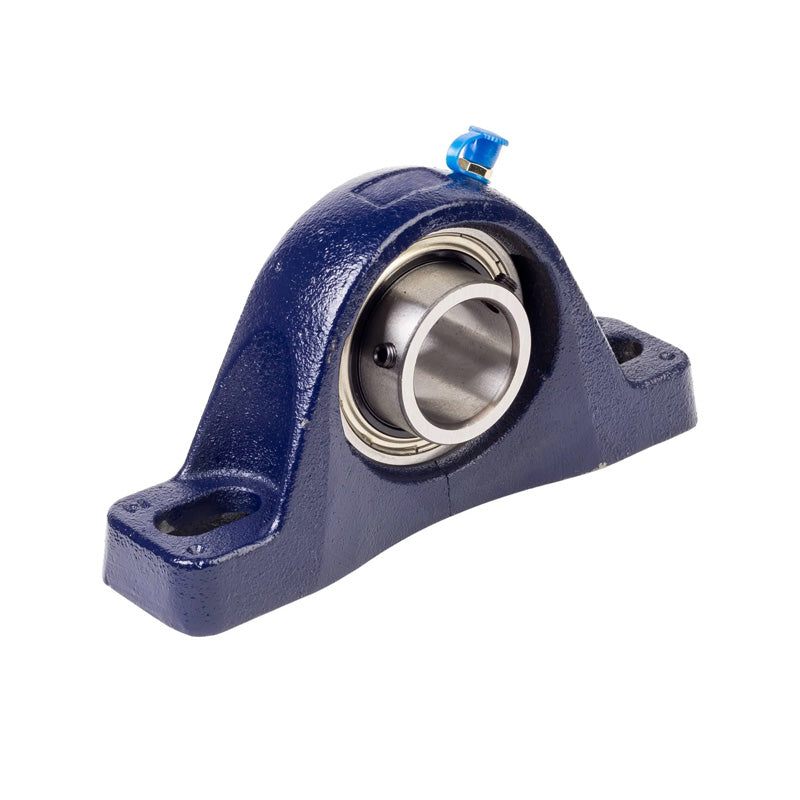

• RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert
1 1

SKU: MP100-RHP

RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert

RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert
$796.08 ex VAT
$796.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $533.24
20+ $503.28
30+ $497.29
40+ $491.30
50+ $485.31
75+ $479.31
100+ $449.36
200+ $443.37
250+ $437.37
500+ $431.38
1000+ $419.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
100mm
Style:
MP
Bolt Hole Centres:
11.874-14.626mm
Technical
Bore 100mm
L 17 inch
H 5 inch
H1 1.311 inch
H2 10 inch
J max 14.626 inch
J min 11.874 inch
G 1 inch
A 4.748 inch
A1 3.874 inch
B 4.625 inch
s 1.94 inch
d1 5.135 inch
Dynamic load Cr 157000 N
Static load Cor 122000 N
Rec max speed 1600 rpm
Weight 34.4 kg
Insert <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
