• RHP MP1035-1-3/16K Two Bolt Cast Iron Pillow Block with Insert and H307/1-3/16 Taper Sleeve = 1-3/16 inch Shaft Size
1 1

SKU: MP1035-1.3/16K-RHP

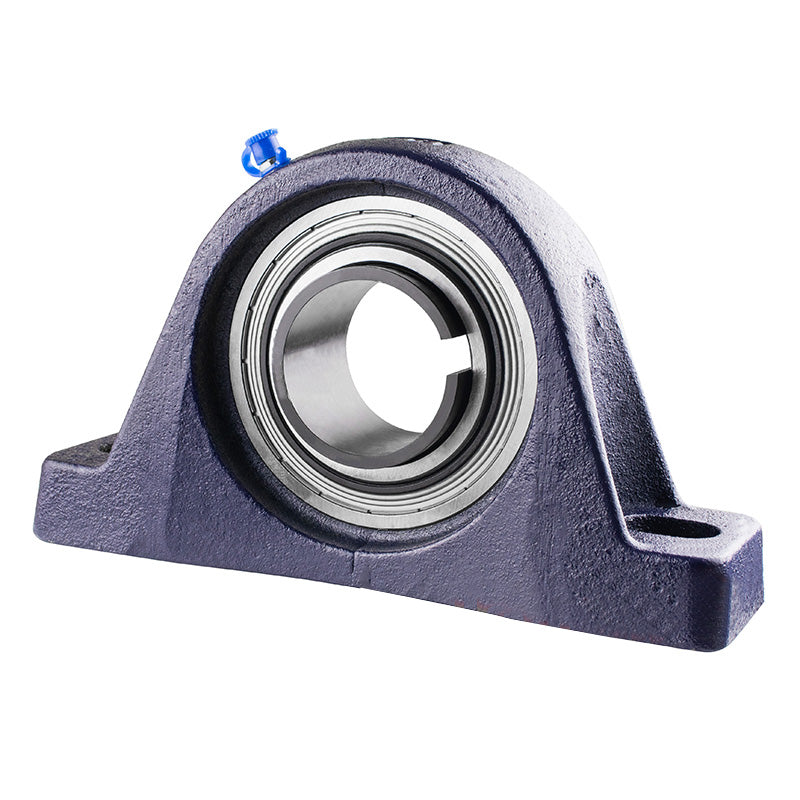

RHP MP1035-1-3/16K Two Bolt Cast Iron Pillow Block with Insert and H307/1-3/16 Taper Sleeve = 1-3/16 inch Shaft Size

RHP MP1035-1-3/16K Two Bolt Cast Iron Pillow Block with Insert and H307/1-3/16 Taper Sleeve = 1-3/16 inch Shaft Size
$110.85 ex VAT
$110.85 ex VAT
Sale Sold out

In stock

Price Break
10+ $74.26
20+ $70.08
30+ $69.25
40+ $68.41
50+ $67.58
75+ $66.75
100+ $62.57
200+ $61.74
250+ $60.91
500+ $60.07
1000+ $58.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
MP
Bolt Hole Centres:
4.783-5.374 inch
Technical
Bore 1-3/16 inch
L 6.535 inch
H 1.874 inch
H1 0.689 inch
H2 3.661 inch
J max 5.374 inch
J min 4.783 inch
G 0.5 inch
A 1.752 inch
A1 1.201 inch
B5 1.378 inch
d4 2.047 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 UNF x 28 TPI
