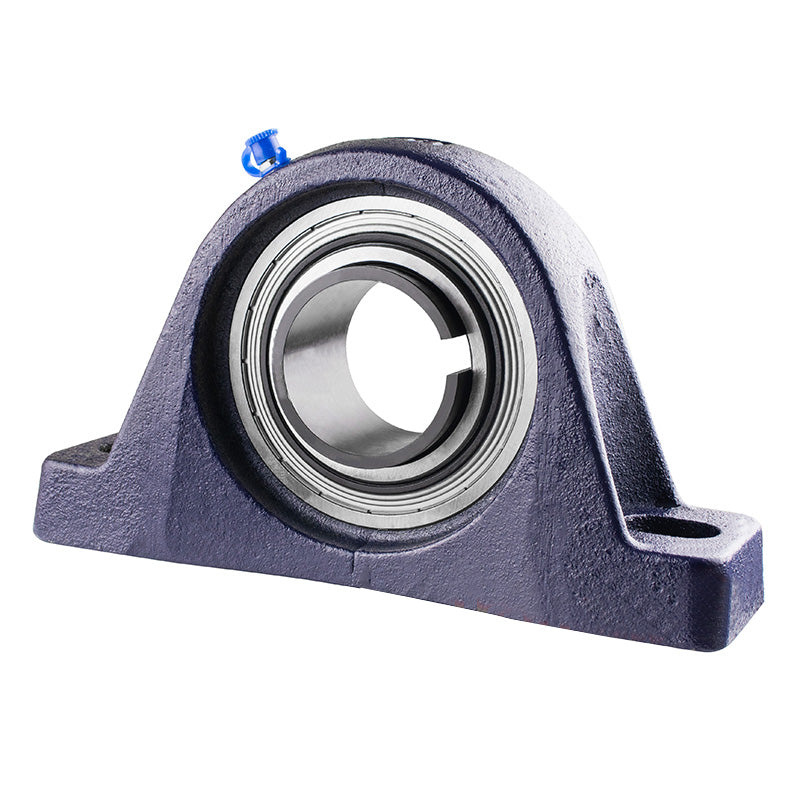

• RHP MP1035-30K Two Bolt Cast Iron Pillow Block with Insert and H307 Taper Sleeve = 30mm Shaft Size
1 1

SKU: MP1035-30K-RHP

RHP MP1035-30K Two Bolt Cast Iron Pillow Block with Insert and H307 Taper Sleeve = 30mm Shaft Size

RHP MP1035-30K Two Bolt Cast Iron Pillow Block with Insert and H307 Taper Sleeve = 30mm Shaft Size
$114.63 ex VAT
$114.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.78
20+ $72.46
30+ $71.60
40+ $70.74
50+ $69.88
75+ $69.01
100+ $64.70
200+ $63.84
250+ $62.97
500+ $62.11
1000+ $60.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
MP
Bolt Hole Centres:
121.5-136.5mm
Technical
Bore 30mm
L 166mm
H 47.6mm
H1 17.5mm
H2 93mm
J max 136.5mm
J min 121.5mm
G 12mm
A 44.5mm
A1 30.5mm
B5 35mm
d4 52mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 UNF x 28 TPI
