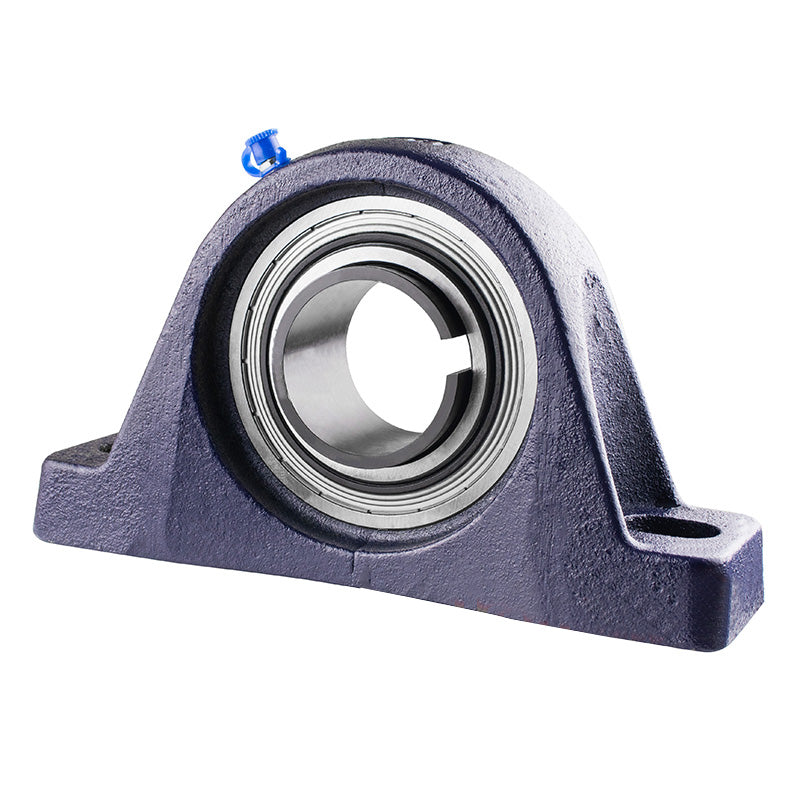

• RHP MP1045-40K Two Bolt Cast Iron Pillow Block with Insert and H309 Taper Sleeve = 40mm Shaft Size
1 1

SKU: MP1045-40K-RHP

RHP MP1045-40K Two Bolt Cast Iron Pillow Block with Insert and H309 Taper Sleeve = 40mm Shaft Size

RHP MP1045-40K Two Bolt Cast Iron Pillow Block with Insert and H309 Taper Sleeve = 40mm Shaft Size
$141.21 ex VAT
$141.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $94.59
20+ $89.28
30+ $88.21
40+ $87.15
50+ $86.09
75+ $85.03
100+ $79.71
200+ $78.65
250+ $77.59
500+ $76.52
1000+ $74.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
MP
Bolt Hole Centres:
145-172.5mm
Technical
Bore 40mm
L 222.2mm
H 58.72mm
H1 22.5mm
H2 116.7mm
J max 172.5mm
J min 145mm
G 16mm
A 60mm
A1 39.5mm
B5 39mm
d4 65mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 UNF x 28 TPI
