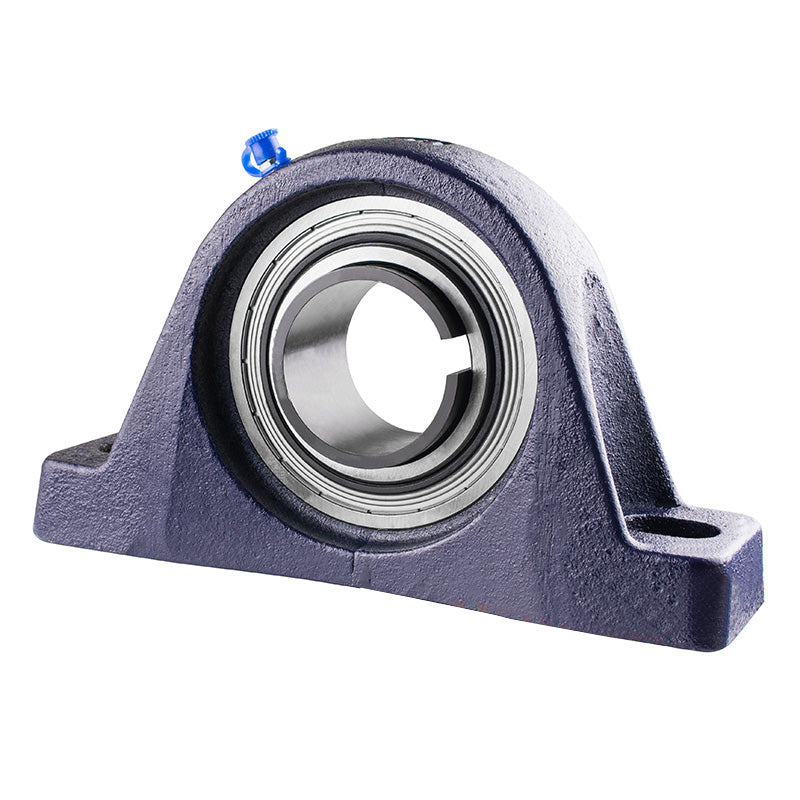

• RHP MP1050-1-3/4K Two Bolt Cast Iron Pillow Block with Insert and H310/1-3/4 Taper Sleeve = 1-3/4 inch Shaft Size
1 1

SKU: MP1050-1.3/4K-RHP

RHP MP1050-1-3/4K Two Bolt Cast Iron Pillow Block with Insert and H310/1-3/4 Taper Sleeve = 1-3/4 inch Shaft Size

RHP MP1050-1-3/4K Two Bolt Cast Iron Pillow Block with Insert and H310/1-3/4 Taper Sleeve = 1-3/4 inch Shaft Size
$173.25 ex VAT
$173.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $116.05
20+ $109.53
30+ $108.22
40+ $106.92
50+ $105.61
75+ $104.31
100+ $97.79
200+ $96.49
250+ $95.18
500+ $93.88
1000+ $91.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
MP
Bolt Hole Centres:
5.709-6.791 inch
Technical
Bore 1-3/4 inch
L 8.748 inch
H 2.312 inch
H1 0.864 inch
H2 4.594 inch
J max 6.791 inch
J min 5.709 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B5 1.654 inch
d4 2.756 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 UNF x 28 TPI
