• RHP MP1050-45K Two Bolt Cast Iron Pillow Block with Insert and H310 Taper Sleeve = 45mm Shaft Size
1 1

SKU: MP1050-45K-RHP

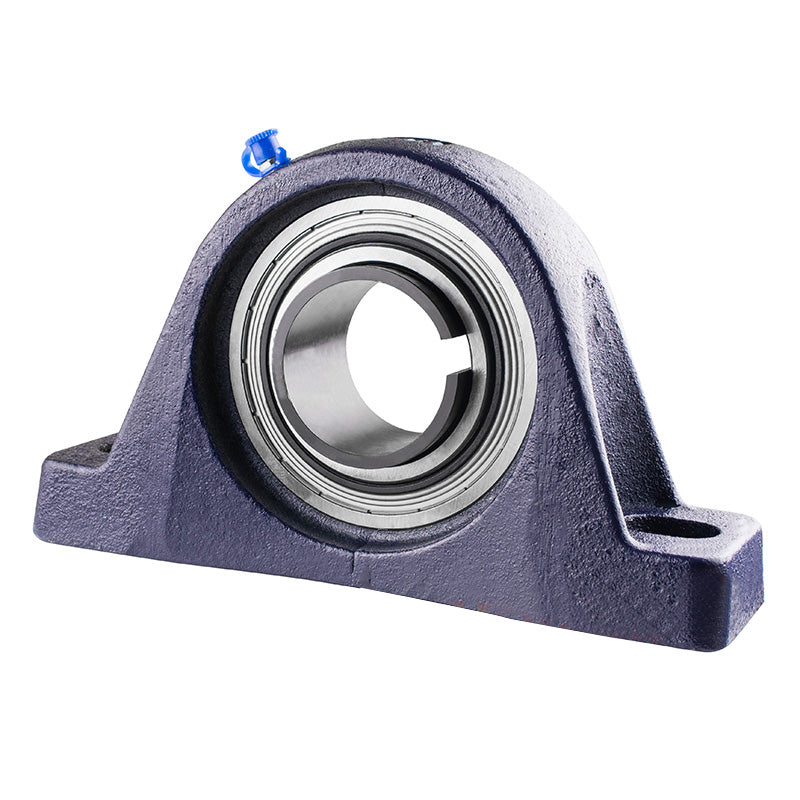

RHP MP1050-45K Two Bolt Cast Iron Pillow Block with Insert and H310 Taper Sleeve = 45mm Shaft Size

RHP MP1050-45K Two Bolt Cast Iron Pillow Block with Insert and H310 Taper Sleeve = 45mm Shaft Size
$163.50 ex VAT
$163.50 ex VAT
Sale Sold out

In stock

Price Break
10+ $109.51
20+ $103.36
30+ $102.13
40+ $100.90
50+ $99.67
75+ $98.44
100+ $92.29
200+ $91.05
250+ $89.82
500+ $88.59
1000+ $86.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
MP
Bolt Hole Centres:
145-172.5mm
Technical
Bore 45mm
L 222.2mm
H 58.72mm
H1 22.5mm
H2 116.7mm
J max 172.5mm
J min 145mm
G 16mm
A 60mm
A1 39.5mm
B5 42mm
d4 70mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050K+insonly">1050K Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 UNF x 28 TPI
