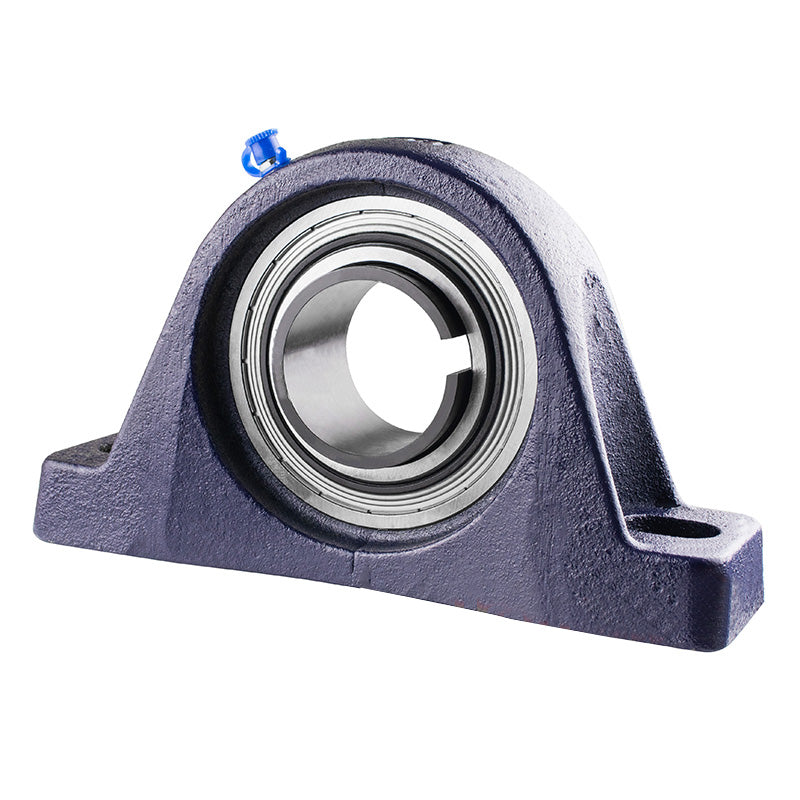

• RHP MP1055-50K Two Bolt Cast Iron Pillow Block with Insert and H311 Taper Sleeve = 50mm Shaft Size
1 1

SKU: MP1055-50K-RHP

RHP MP1055-50K Two Bolt Cast Iron Pillow Block with Insert and H311 Taper Sleeve = 50mm Shaft Size

RHP MP1055-50K Two Bolt Cast Iron Pillow Block with Insert and H311 Taper Sleeve = 50mm Shaft Size
$203.14 ex VAT
$203.14 ex VAT
Sale Sold out

In stock

Price Break
10+ $136.08
20+ $128.43
30+ $126.90
40+ $125.37
50+ $123.84
75+ $122.31
100+ $114.67
200+ $113.14
250+ $111.61
500+ $110.08
1000+ $107.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
MP
Bolt Hole Centres:
162.5-178.5mm
Technical
Bore 50mm
L 219.5mm
H 63.5mm
H1 24.8mm
H2 129.5mm
J max 178.5mm
J min 162.5mm
G 16mm
A 60mm
A1 39.5mm
B5 45mm
d4 75mm
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 UNF x 28 TPI
