SKU: MP2.1/2-RHP

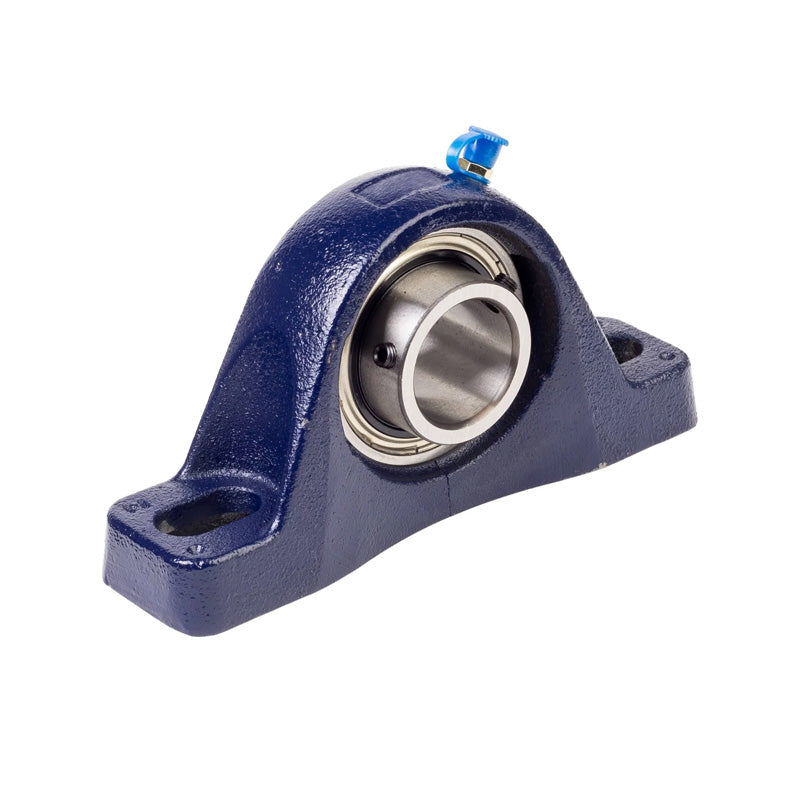

RHP MP2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Insert

RHP MP2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Insert
Regular price $219.01 ex VAT
Regular price Sale price $219.01 ex VAT
Sale Sold out

In stock

Price Break
10+ $146.70
20+ $138.46
30+ $136.81
40+ $135.16
50+ $133.51
75+ $131.86
100+ $123.62
200+ $121.97
250+ $120.33
500+ $118.68
1000+ $115.38
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/2 inch
L 11.252 inch
H 3 inch
H1 1.063 inch
H2 6.252 inch
J max 8.811 inch
J min 7.48 inch
G 0.75 inch
A 3.252 inch
A1 2.374 inch
B 2.938 inch
s 1.19 inch
d1 3.425 inch
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rec max speed 2450 rpm
Weight 9.3 kg
Insert <a href="advanced_search_result.php?keywords=1070-2-1/2G+insonly">1070-2-1/2G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
