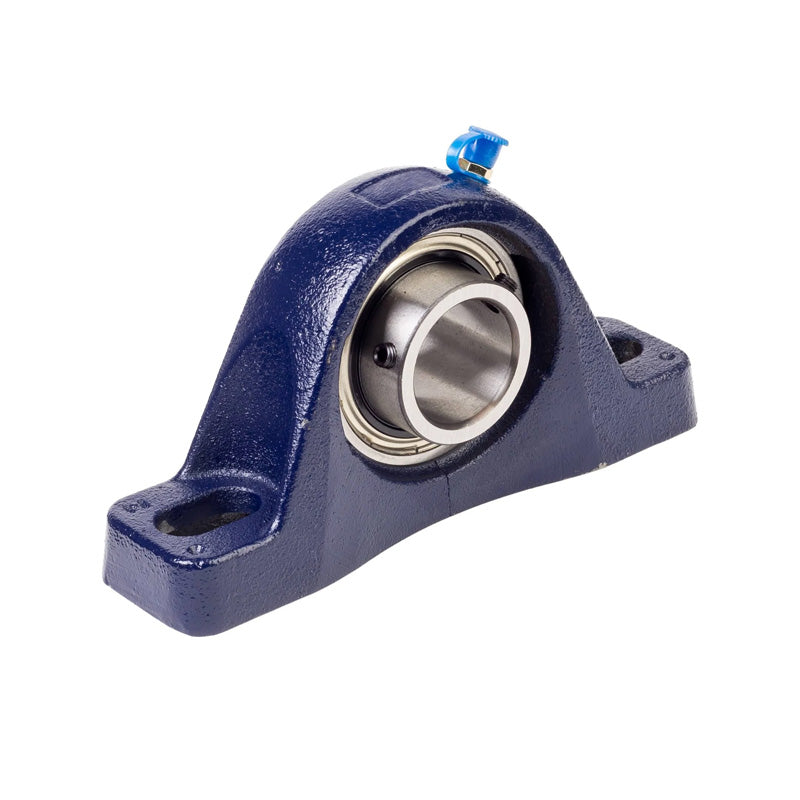

• RHP MP2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Insert
1 1

SKU: MP2.1/4-RHP

RHP MP2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Insert

RHP MP2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Insert
$183.87 ex VAT
$183.87 ex VAT
Sale Sold out

In stock

Price Break
10+ $123.15
20+ $116.24
30+ $114.85
40+ $113.47
50+ $112.08
75+ $110.70
100+ $103.78
200+ $102.40
250+ $101.01
500+ $99.63
1000+ $96.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Style:
MP
Bolt Hole Centres:
6.89-7.874 inch
Technical
Bore 2-1/4 inch
L 10.252 inch
H 2.75 inch
H1 1.063 inch
H2 5.626 inch
J max 7.874 inch
J min 6.89 inch
G 0.75 inch
A 3.126 inch
A1 2 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 7.1 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
