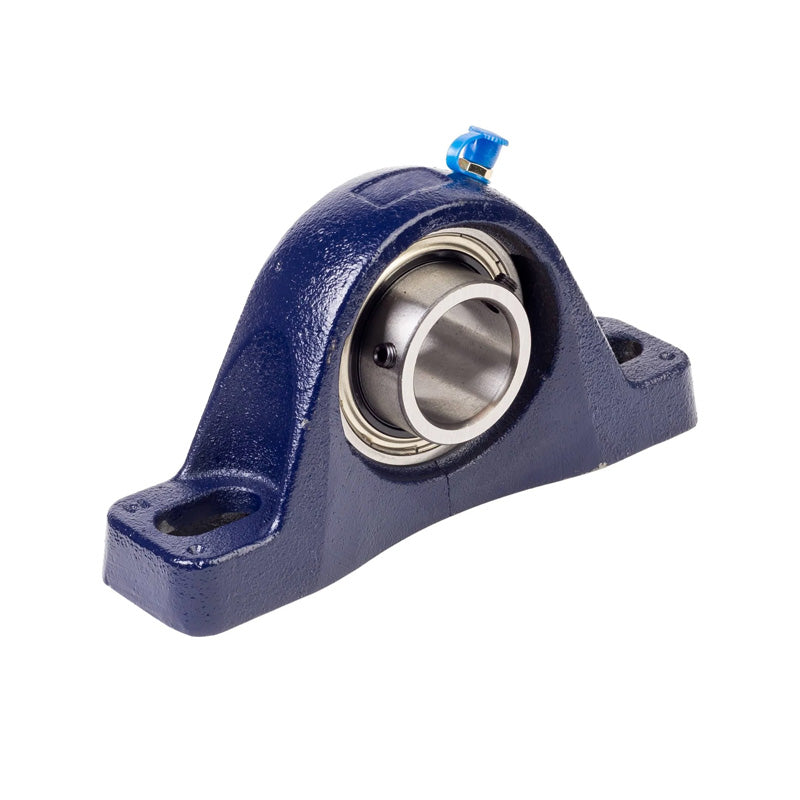

• RHP MP2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Insert
1 1

SKU: MP2.3/4-RHP

RHP MP2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Insert

RHP MP2-3/4 Two Bolt Cast Iron Pillow Block and 2-3/4 Bore Grub Screw Insert
$311.82 ex VAT
$311.82 ex VAT
Sale Sold out

In stock

Price Break
10+ $208.86
20+ $197.13
30+ $194.78
40+ $192.44
50+ $190.09
75+ $187.74
100+ $176.01
200+ $173.66
250+ $171.31
500+ $168.97
1000+ $164.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Style:
MP
Bolt Hole Centres:
8.11-10.063 inch
Technical
Bore 2-3/4 inch
L 13 inch
H 3.5 inch
H1 1.126 inch
H2 7 inch
J max 10.063 inch
J min 8.11 inch
G 1 inch
A 3.5 inch
A1 2.626 inch
B 3.062 inch
s 1.314 inch
d1 3.622 inch
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 13.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
